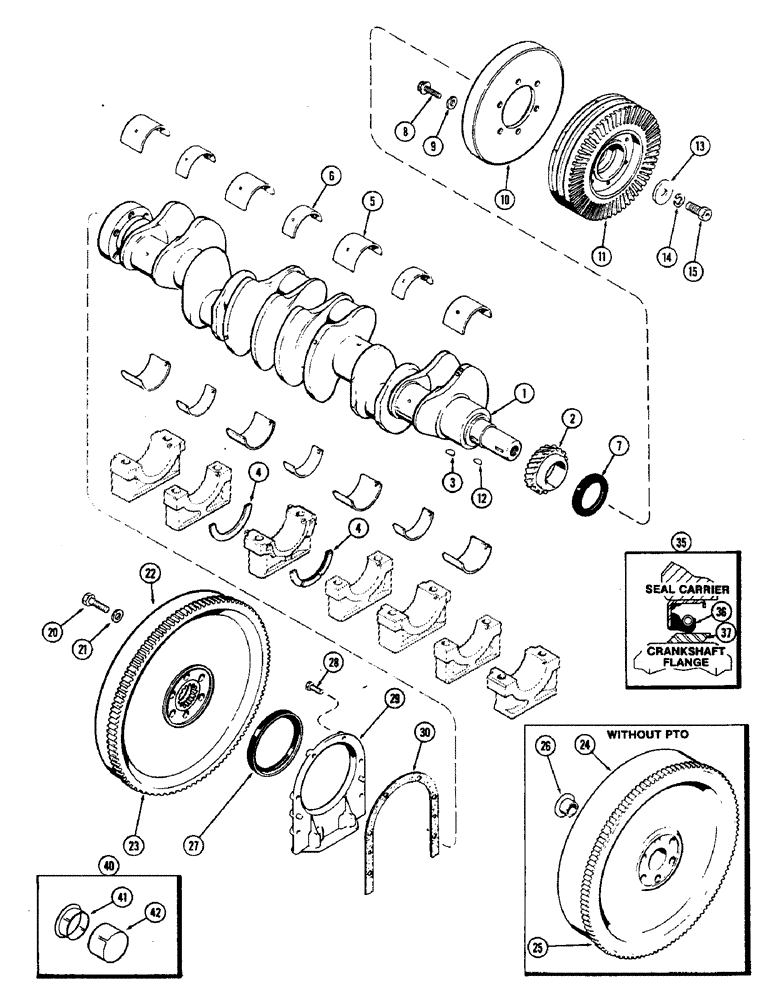

Запчасти Case IH 2470 (042) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSEMBLY - engine (Replaces A65097 and A66728), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft, front

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft front gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft, (0.156") Standard (3.96 MM)

2шт.

4

A42447

WASHER

- thrust, crankshaft, (0.162") Oversize (4.11 MM)

2шт.

5

A43090

BEARING LINER

LINER KIT - standard (Wide) (Set of 2)

4шт.

5

A43124

LINING

LINER KIT - wide, 0.002" undersize (0.06 MM) (Set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT - wide, 0.010" undersize (0.26 MM) (Set of 2)

4шт.

5

A43126

LINING

LINER KIT - wide, 0.020" undersize (0.50 MM) (Set of 2)

4шт.

5

A43127

LINING

LINER KIT - wide, 0.030" undersize (0.77 MM) (Set of 2)

4шт.

6

A43089

BEARING LINER

LINER KIT - standard (Narrow) (Set of 2)

3шт.

6

A43120

LINING

LINER KIT - narrow, 0.002" undersize (0.06 MM) (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER KIT - narrow, 0.010" undersize (0.26 MM) (Set of 2)

3шт.

6

A43122

LINING

LINER KIT - narrow, 0.020" undersize (0.50 MM) (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER KIT - narrow, 0.030" undersize (0.77 MM) (Set of 2)

3шт.

7

A62049

OIL SEAL

- crankshaft, front, 2-5/8 x 3-5/8 x 1/2" (76.68 x 92.8 x 11.9 MM)

1шт.

8

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 1/2 x 1-1/2" NC Ferry head, grade 8, Serial Range: damper-pulley

6шт.

9

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

6шт.

10

A66134

SHOCK ABSORBER

DAMPER - viscous

1шт.

11

A76457

PULLEY

- crankshaft, fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft pulley #C, 5/16" x 1 1/8", HT

1шт.

13

A156428

WASHER

- pulley bolt (Replaces A27903)

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW - 5/8 x 1-1/2" NF hex. (Replaces A28028)

1шт.

20

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8 x 1-3/4" NF hex., grade 8

6шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

22

A153946

FLYWHEEL

ASSEMBLY - with splined hub (Used with PTO) (Replaces A66613), Includes: Ref. 23

1шт.

23

A27920

GEAR

- ring (137 teeth)

1шт.

24

A75299

FLYWHEEL ASSEMBLY - used without PTO, Includes: Ref. 25 and 26

1шт.

25

A27920

GEAR

- ring (137 teeth)

1шт.

26

A63928

BUSHING

-, Serial Range: crankshaft-flywheel

1шт.

27

A62050

OIL SEAL

- rear, 4-3/4 x 5-3/4 x 1/2" (120.65 x 146.05 x 12.7 MM) (See ref. 35)

1шт.

28

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - 3/8 x 1-1/4" NC hex., Sems (Replaces 13-620 and 92-6)

6шт.

29

A57457

RETAINER

- oil seal, crankshaft rear

1шт.

30

A32830

GASKET

- retainer

1шт.

35

A43194

KIT

- wear seal, crankshaft, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - crankshaft wear

1шт.

40

A154684

SLEEVE

KIT - crankshaft pulley wear sleeve, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
