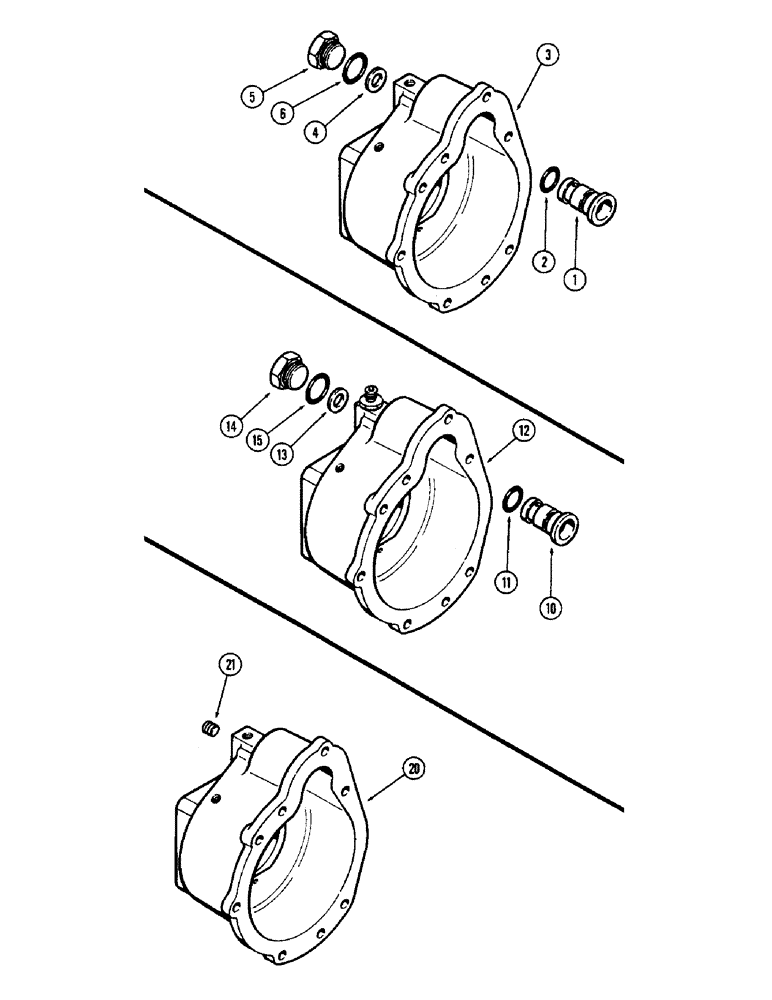

Запчасти Case IH 2470 (171A) - P.T.O. CLUTCH HOUSING, 1ST USED TRANSMISSION SERIAL NO. 2416473 (06) - POWER TRAIN

1

A76399

SLEEVE

- P.T.O. brake piston

1шт.

2

A25590

O-RING,15" ID x 1 1" OD x 3/32"

"O" RING - (1-1/8 x 15/16 x 3/32")

1шт.

3

A76398

HOUSING

- P.T.O. clutch

1шт.

4

A64303

WASHER

SHIM - adjusting (1-1/16 x 41/64 x 1/16") (Repl. D32659)

1шт.

5

218-5159

PLUG,1-3/16" - 12 ORB

ASSY. - (7/8" tube O.D.), Includes: Ref. 6

1шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 1/8")

1шт.

10

A76399

SLEEVE

- P.T.O. brake piston, used transmission s/n 2411292 - 2416472

1шт.

11

A25590

O-RING,15" ID x 1 1" OD x 3/32"

"O" RING - (1-1/8 x 15/16 x 3/32"), used transmission s/n 2411292 - 2416472

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. clutch (Order 1-A76398 hsg., 1-218-5159 plug assy. & 1-218-443 connector), used transmission s/n 2411292 - 2416472

1шт.

13

A64303

WASHER

SHIM - adjusting (1-1/16 x 41/64 x 1/16") (Repl. D32659), used transmission s/n 2411292 - 2416472

1шт.

14

A76443

PLUG - hex., used transmission s/n 2411292 - 2416472

1шт.

15

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 1/8"), used transmission s/n 2411292 - 2416472

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. clutch (Order 1-A76398 hsg., 1-A76399 sleeve, 2-A64303 shims, 1-A25509 "O" ring & 1-218-5159 plug assy.), used transmission s/n 2411292 - 2416472

1шт.

21

221-841

PLUG

- pipe (1/4" hex. socket), used transmission s/n 2411292 - 2416472

1шт.
