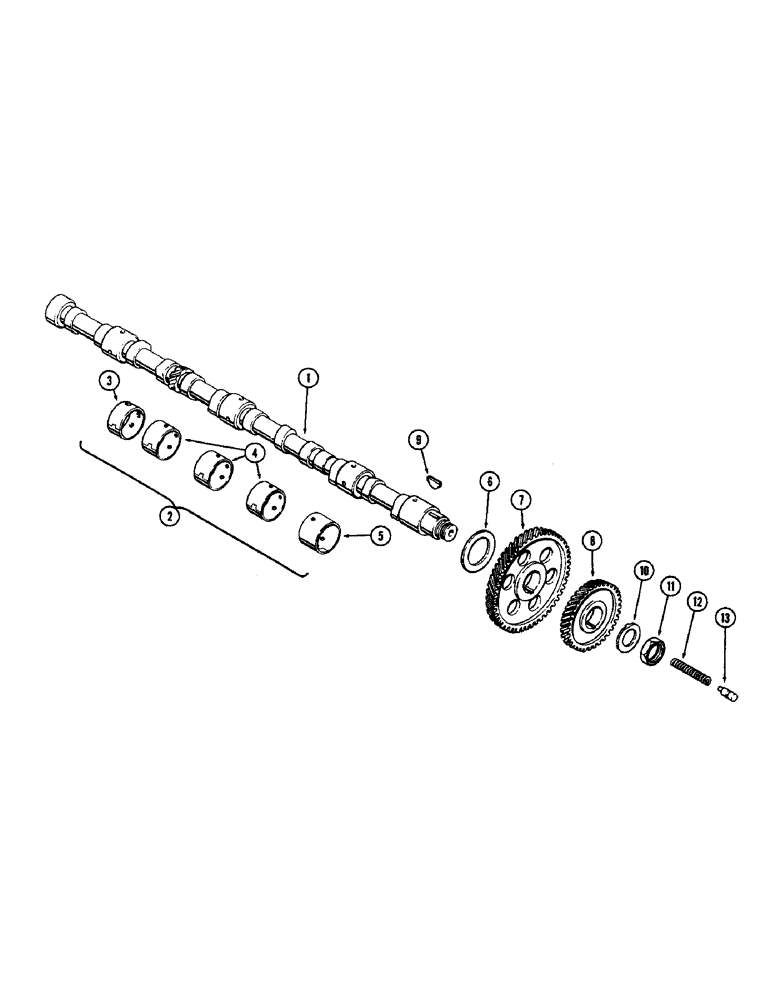

Запчасти Case IH 2470 (031C) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine (Replaced A63906)

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 4), Includes: Ref. 3 - 5

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear (1-5/32" wide)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate (1-7/16" wide)

3шт.

5

A21008

MANIFOLD

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (5/16 x 1-5/16" Hi-Pro)

1шт.

10

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.
