(038) - OIL PUMP, 504BDT DIESEL ENGINE

Запчасти Case IH 2470 (038) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

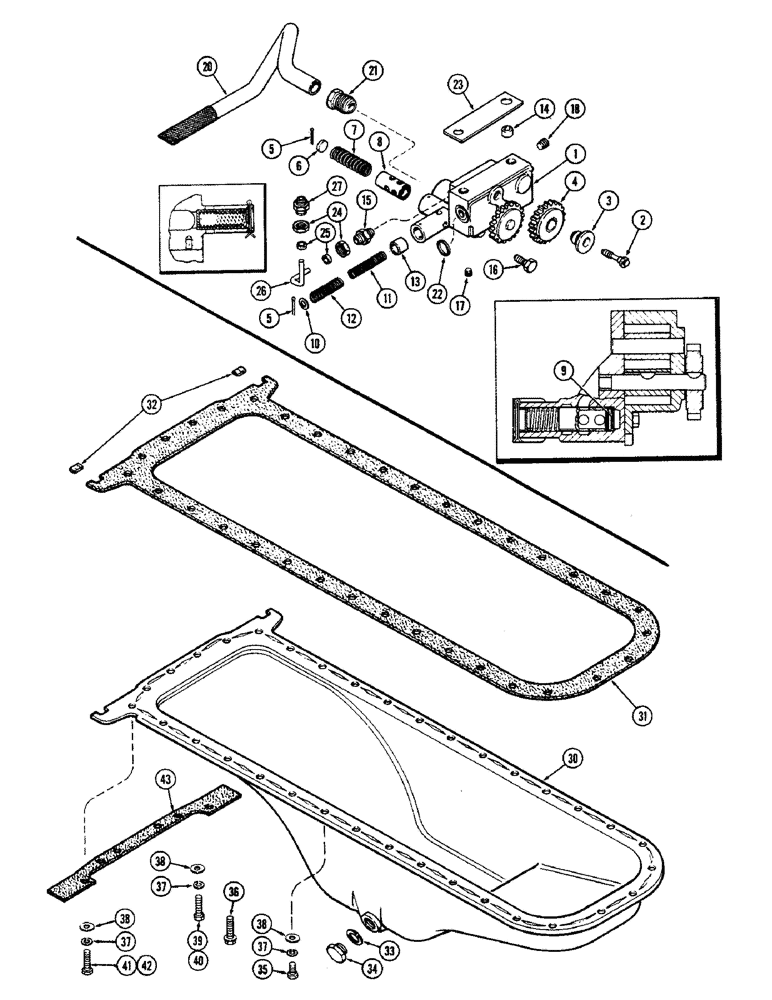

Схема запчастей Case IH 2470 - (038) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE
1
23
40
32
15
12
41
10
7
37
25
37
38
11
37
8
2
30
13
5
31
42
36
26
17
27
22
4
18
33
20
43
38
38
6
35
9
34
5
39
3
24
21
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A66002

PUMP

ASSEMBLY - oil (Replaced A63934), Includes: Ref. 2 - 18

1шт.

2

A63945

12 PT SCREW

BOLT - (3/8" - 16 N.C. ferry cap, L.H.)

1шт.

3

A63944

SHAFT

- idler gear

1шт.

4

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

5

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

6

41-1016

PLUG,Cup, 1"

- relief valve

1шт.

7

A63949

SPRING

- relief valve (2-7/8" free length)

1шт.

8

A75286

VALVE

ASSEMBLY - relief (With cup plug)

1шт.

9

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

1шт.

10

A76154

SPRING

- inner (3-7/64" free length)

1шт.

11

A76153

SPRING

- outer (2-7/16" free length)

1шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

14

A58915

SLEEVE

- oil pump body

1шт.

15

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (1/4" tube x 1/8" P.T.) in oil pump cover

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cover to body Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- pipe (1/16" square socket head) in cover

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex socket head)

1шт.

20

A75288

SCREEN

ASSEMBLY - oil pump suction

1шт.

21

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

22

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block (59/64 x 1-1/8 x 7/64")

1шт.

23

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

24

222-153

SLEEVE,1/4" Tube

2шт.

25

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting

2шт.

26

A75290

TUBE

- oil pump gallery sensing

1шт.

27

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (1/4" tube x 1/8" P.T.) in block

1шт.

30

A75291

NO LONGER SERVICED

PAN - oil

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from figure 41A)

1шт.

32

A75308

OIL PAN GASKET SET

- oil pan corners

2шт.

33

A27968

RING

- drain plug (Replaced A58933), oil pan

1шт.

34

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

36

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. Sems), oil pan

2шт.

37

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.

38

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16"), oil pan

32шт.

39

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap (3/8 x 1-1/4" N.C. hex. socket head) oil pan rear seal, inside holes (1st used tractor serial no. 8692593)

4шт.

40

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Oil pan rear seal, inside holes (Used prior to tractor S/N 8692593) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

40

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Oil pan rear seal, inside holes (Used prior to tractor S/N 8692593) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

41

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - cap (3/8 x 1-1/2" N.C. hex. socket head) oil pan rear seal, outside holes (1st used tractor serial no. 8692593)

2шт.

42

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Oil pan rear seal, outside holes (Used prior to tractor S/N 8692593) Hex, 3/8"-16 x 1 1/2", G5

2шт.

43

A76249

GASKET

- flywheel housing seal plate (See page 40), oil pan

1шт.
