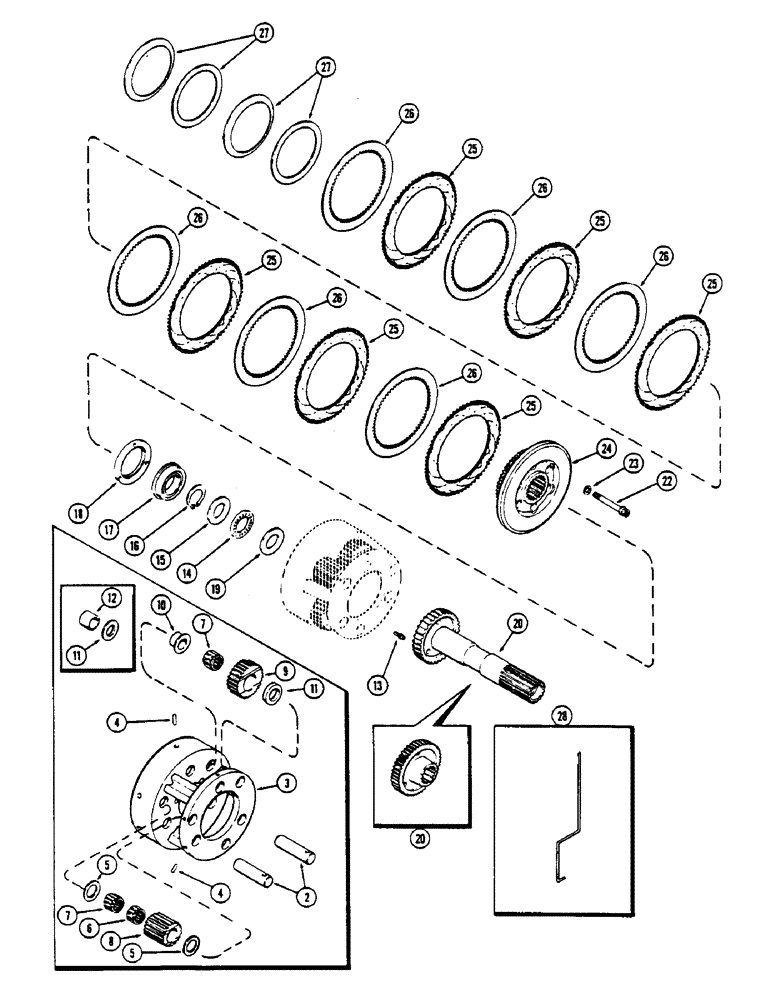

Запчасти Case IH 2670 (214) - CLUTCH, (C-2) CLUTCH AND PLANETARY (06) - POWER TRAIN

2

A76492

PIN,25.4mm OD x 92.33mm L

- short and long planet gear

6шт.

3

A148697

CARRIER

- planetary, with 9/32" dia. (7.14 MM) retainer holes (1st used trans. ser. no. 10027116)

1шт.

3

A76490

NO LONGER SERVICED

CARRIER - planetary, with 7/32" dia. (5.56 MM) retainer holes (Used before trans. ser. no. 10027116) (Order 1-A148697, 1-A146603 and 3-62-410)

1шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gears

6шт.

7

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gears

9шт.

8

A76493

GEAR

- long planet

3шт.

9

A63105

GEAR

- short planet

3шт.

10

A150410

SPACER

RACE - thrust, short planet gear, rear (Replaces A58406)

3шт.

11

A140876

SPACER,25.65mm ID x 31.88mm OD x 31.75mm L

- short planet gear, rear (Replaces 2 pc. A150410 and A76491)

3шт.

12

A76491

BUSHING

SPACER - short planet gear, rear

3шт.

13

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - 1/4 x 5/8" hex sckt. hd. (Used with A146603)

3шт.

13

165-156

HEX SOC SCREW,Prev Torque, #10 - 24 x 5/8"

BOLT - (#10-24 x 5/8" hex sckt. hd., with J-Loc) (Used with A64444)

3шт.

14

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust, sun drive gear

1шт.

15

A54021

WASHER

RACE - thrust, sun drive gear

1шт.

16

A7611

SNAP RING,#175, Ext

Ring, Snap, , planetary bearing #175, Ext

1шт.

17

A63109

BEARING, BALL

BEARING - ball, planetary carrier, with snap ring

1шт.

18

A146603

RETAINER

- planetary carrier, with 1/4" N.F. tapped holes (Replaces A64444) (1st used trans. ser. no. 10027116)

1шт.

18

A64444

COLLAR

RETAINER - planetary carrier, with #10 N.C. tapped holes (Order 1-A148697, 1-A146603 and 3-62-410) (Used before trans. ser. no. 100027116)

1шт.

19

H147785

BEARING WASHER

WASHER - thrust, drive sun gear

1шт.

20

A148695

SHAFT

- drive gear (With P.T.O.) (With 3 holes 25/64" dia.) (9.92 MM) (1st used trans. ser. no. 10027107)

1шт.

20

A76489

SHAFT

- drive gear (With P.T.O.) (With 3 holes 23/64" dia.) (9.13 MM) (Used before trans. ser. no. 10027109)

1шт.

21

A75109

GEAR

- drive, sun (Without P.T.O.)

1шт.

22

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - (3/8 x 3" N.C. Ferry cap)

6шт.

If dealer is looking for 1/2 x 4" screw, P/N 166-96 (rep by 380-2864) as shown in 4690 catalog.

1шт.

23

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 49/64 x 1/32")

6шт.

24

A152848

HUB

- (C-2) clutch (Replaces A76495)

1шт.

25

A61981

PLATE

- sintered (C-1) clutch

6шт.

26

A155461

PLATE

- steel (C-2) clutch (Replaces A58089)

6шт.

27

A58094

SPRING

- Belleville (C-2) clutch piston return

4шт.

28

A45212

HOLDER

- (C-2) clutch plate

3шт.
