(248) - REAR AXLE TRUNNION AND PIVOT

Запчасти Case IH 2670 (248) - REAR AXLE TRUNNION AND PIVOT (06) - POWER TRAIN

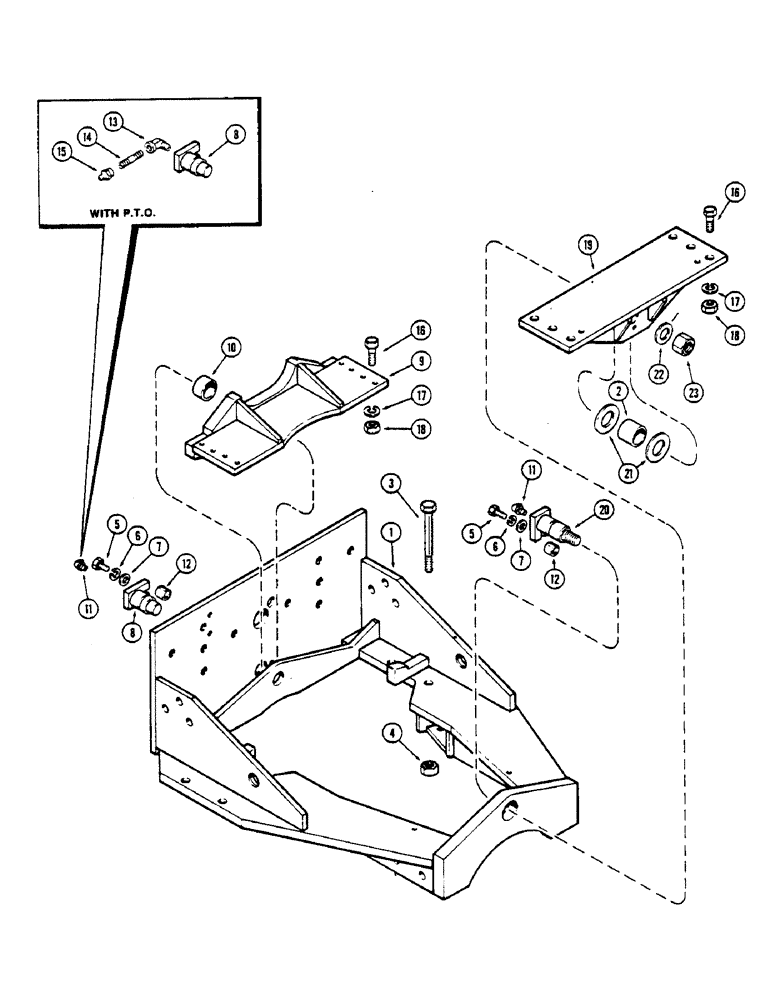

Схема запчастей Case IH 2670 - (248) - REAR AXLE TRUNNION AND PIVOT (06) - POWER TRAIN
7
9
16
11
1
3
5
6
5
12
11
13
17
22
18
8
4
23
2
12
18
19
14
21
17
20
15
16
8
7
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A143049

TRUNNION ASSY. - rear axle (First used tractor serial no. 8826961)

1шт.

1

A76530

TRUNNION ASSY. - rear axle (Used prior to tractor serial no. 8826961), Includes: Ref. 2

1шт.

2

A75651

BUSHING,44.96mm ID x 53.92mm OD x 48.26mm L

1шт.

3

28-14144

BOLT,Hex, 7/8" - 14 x 9", Gr 8

- 7/8 x 9" NF hex, grade 8

8шт.

4

131-187

LOCK NUT,7/8"-14, GB

NUT - lock (7/8" NF ESNA)

8шт.

5

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

L30674

WASHER

- 17/32 x 1 x 1/8" (Used with A148192 and A148193)

2шт.

7

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (Used with A142017 and A142018)

2шт.

8

A145193

PIN

- rear trunnion (Replaces A75661 and A142017) (1st used tractor serial no. 8795626)

1шт.

8

A142017

PIN

- rear trunnion (Order A145193) (Used prior to tractor serial no. 8795626)

1шт.

9

A77166

NO LONGER SERVICED

ANCHOR ASSY. - rear trunnion

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

1шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Used with and without PTO) 90º, 1/8" NPT x .84" lg

1шт.

12

A148908

SPACER

- trunnion pin bolt, 1/2 x 3/4 x 7/16" (Used with A145192 and A145193)

2шт.

12

A19781

BUSHING

SPACER - trunnion pin bolt, 1/2 x 5/8 x 3/8 (Used with A142017 and A142018)

2шт.

13

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees (Used with PTO)

1шт.

14

221-117

FITTING

NIPPLE - pipe, 1/8 x 6" (Used with PTO)

1шт.

15

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - lube (Straight) (Used with PTO)

1шт.

16

28-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex, grade 8

14шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

18

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" NF, grade 8

14шт.

19

A76541

ANCHOR

- front trunnion

1шт.

20

A145192

PIN

- front trunnion (Replaces A75674 and A142018) (1st used tractor serial no. 8795626)

1шт.

20

A142018

PIN

- front trunnion (Order A145192) (Used prior to serial no. 8795626)

1шт.

21

A14003

WASHER

- thrust 1-25/32 x 1-3/4" x 14 ga

2шт.

22

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- 1-5/16 x 2-3/4 x 3/16"

1шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , Esna 1 1/4"-12, GB

1шт.
