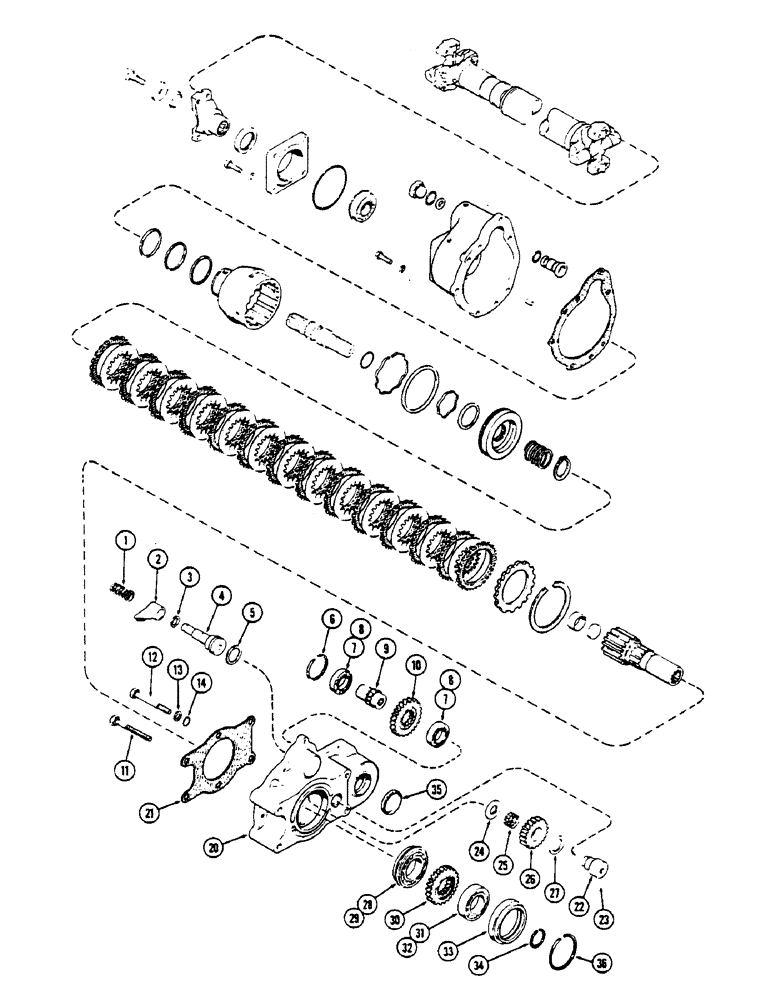

Запчасти Case IH 2670 (264) - P.T.O. BRAKE AND HYDRAULIC PUMP DRIVE (08) - HYDRAULICS

1

A76338

SPRING

P.T.O. brake return, 1-5/8" free length (41.27 MM)

1шт.

2

A142994

SHOE

ASSY. - P.T.O. brake (Bonded) (Replaces A76387)

1шт.

3

A76340

SEALING RING

- 3/4" O.D. (19.05 MM)

1шт.

4

A76339

PISTON

- P.T.O. brake

1шт.

5

A58989

RING

SEAL - 1-3/4" O.D. (44.09 MM)

1шт.

6

A27414

RING

- snap, hyd. pump drive coupling bearing

1шт.

7

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING - hyd. pump drive coupling, 1-9/16 x 2-11/16 x 19/32" (1st used trans. ser. no. 10052352)

2шт.

8

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

BEARING - hyd. pump drive coupling, 1-9/16 x 2-11/16 x 19/32" (Used before trans. ser. no. 10052352) (Order A150525)

2шт.

9

A75192

COUPLING, BREAK AWAY

COUPLING - hyd. pump drive

1шт.

10

A75194

GEAR

- driven, hyd. pump drive (30 ext./27 int. teeth)

1шт.

11

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

12

A75184

BOLT

- pump drive hgs. to trans. case

2шт.

13

A75185

WASHER

- sealing, pump drive hsg. bolt (11/16 x 1 x 1/16")

2шт.

14

D26872

O-RING

- pump drive housing bolt (1/2 x 5/8 x 1/16") (Replaces A18414)

2шт.

20

A76553

HOUSING

- hyd. pump drive

1шт.

21

A75183

GASKET

- pump drive housing

1шт.

22

A76554

SHAFT

- idler, hyd. pump drive

1шт.

23

211-7

BALL,1/4" Dia

- retainer, hyd. pump drive idler shaft (6.35 mm) 1/4" Dia

1шт.

24

A76360

WASHER

- thrust, 2 x 1 x 3/32" (50.8 x 25.4 x 2.38 MM)

1шт.

25

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

- needle, hyd. pump drive idler gear

1шт.

26

A76555

GEAR

- idler, hyd. pump drive

1шт.

27

A76556

WASHER

- thrust, 2 x 1-1/4 x 3/32" (50.8 x 31.75 x 2.38 MM)

1шт.

28

A150524

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - input shaft, rear, 2-11/64 x 3-5/16 x 53/64" (55.16 x 100 x 21.03 MM) (1st used trans. ser. no. 10052352)

1шт.

29

A75189

BEARING

- input shaft, rear (2-5/32 x 3-15/16 x 13/16") (Used before trans. ser. no. 10052352) (Order A150524)

1шт.

30

A75188

GEAR

- hyd. pump drive (30 ext./33 int. teeth)

1шт.

31

A150523

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - input shaft, front, 1-31/32 x 3-35/64 x 25/32" (50 x 41.67 x 19.84 MM) (1st used trans. ser. no. 10052352)

1шт.

32

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - input shaft, front, 2 x 3-1/2 x 25/32" (50.8 x 76.2 x 19.84 MM) (Used before trans. ser. no. 10052352) (Order A150523)

1шт.

33

A75187

RING

- pilot, input shaft bearing

1шт.

34

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, front bearing to input shaft

1шт.

35

A24361

PLUG

- cup, hyd. pump drive hsg.

1шт.

36

G46143

RING

- snap, front bearing to pilot ring

1шт.
