(280) - P.T.O. DRIVE SHAFT ASSEMBLY

Запчасти Case IH 2670 (280) - P.T.O. DRIVE SHAFT ASSEMBLY (08) - HYDRAULICS

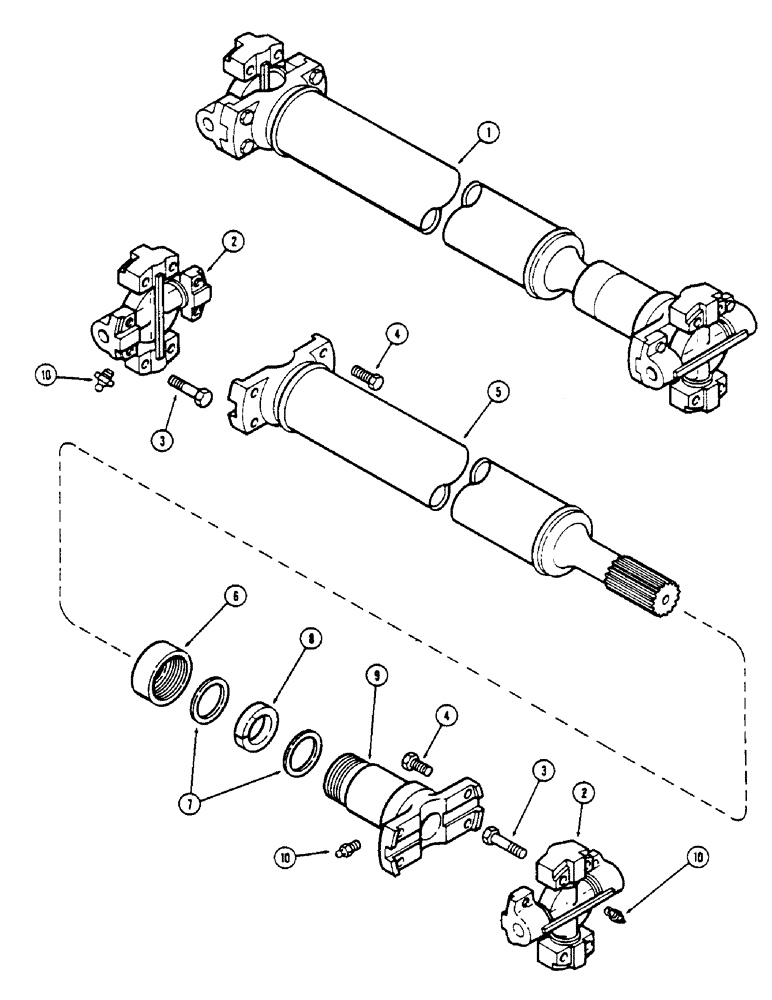

Схема запчастей Case IH 2670 - (280) - P.T.O. DRIVE SHAFT ASSEMBLY (08) - HYDRAULICS
4
6
3
1
10
3
2
7
4
5
2
10
10
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A148811

SHAFT

ASSY. - P.T.O. drive (Replaces A76564), Includes: Ref. 2 - 10

1шт.

2

D73648

JOINT

U-JOINT - spider and bearing assy. (Replaces D56893)

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

- (3/8 x 2-1/4" N.C. hex)

16шт.

4

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

5

A44739

TUBE

- drive shaft

1шт.

6

A19923

CAP

- retainer

1шт.

7

A19922

WASHER

- seal, felt

2шт.

8

A19924

SEAL

- felt, dust cap

1шт.

9

L33943

KIT

YOKE - slip, drive shaft (Replaces A19917)

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" straight)

3шт.
