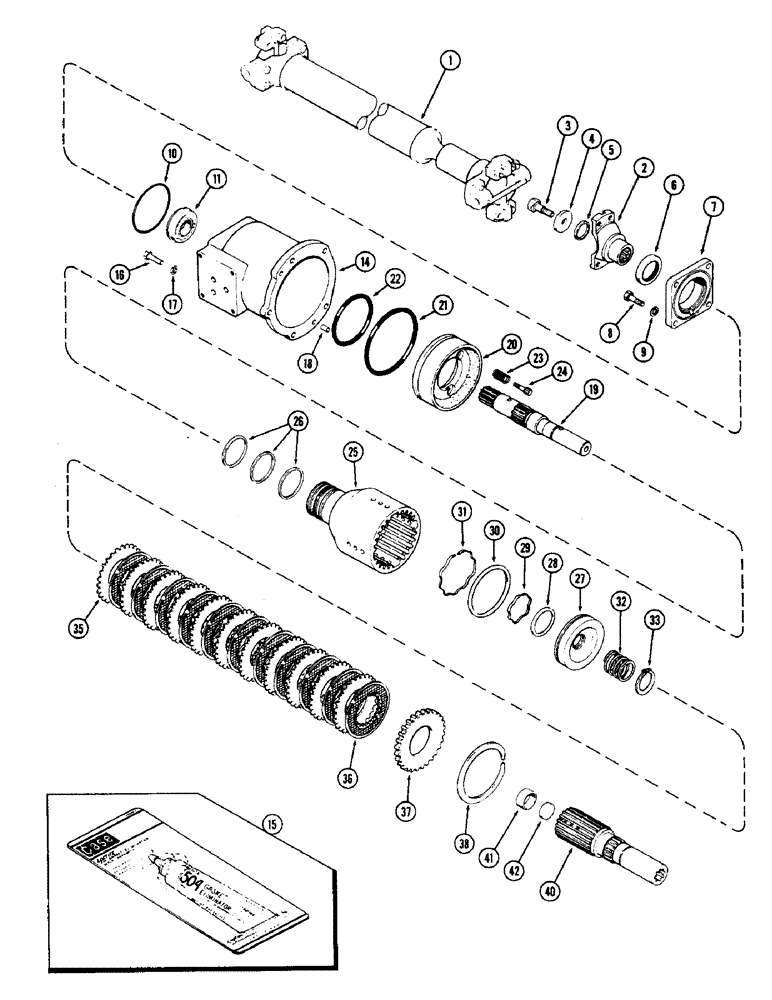

Запчасти Case IH 2870 (236) - PTO CLUTCH AND SHAFTS (06) - POWER TRAIN

1

A148811

SHAFT

ASSEMBLY - PTO drive (See figure 252)

1шт.

2

A76560

YOKE

- output to drive shaft

1шт.

3

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- lock, 1/2 x 2-1/4" NC hex

1шт.

4

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- yoke bolt, 1/2 x 2 x 3/8" (12.7 x 50.8 x 9.53 mm)

1шт.

5

A75205

SEALING WASHER

- yoke, 1-13/32 x 1-5/8 x 5/16" (35.72 x 41.25 x 7.94 mm)

1шт.

6

A76014

OIL SEAL

- oil, output shaft, 2-1/8 x 2-7/8 x 7/16" (54 x 73.03 x 11.11 mm)

1шт.

7

A152916

BEARING CAP

CAP - clutch housing, aluminum (Replaces A75203 cast iron cap)

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- seal, housing cap, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.18 mm)

1шт.

11

G13606

BALL BEARING

BEARING - output shaft

1шт.

14

A138315

HOUSING - PTO clutch

1шт.

15

B17428

LOCTITE

- gasket eliminator, 2 oz - (50 CC)

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

5шт.

17

92-6

LOCK WASHER,3/8"

5шт.

18

A8134

PIN

DOWEL - clutch housing to drive, 3/8 x 3/4" (9.53 x 19.05 mm)

2шт.

19

A138523

SHAFT

- output, PTO drive

1шт.

20

1349397C1

PISTON

ASSEMBLY - PTO brake

1шт.

21

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- outer, brake piston, 6 x 6-1/4 x 1/8" (152.4 x 158.75 x 3.18 mm)

1шт.

22

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- inner, brake piston, 4-3/4 x 5 x 1/8" (120.65 x 127 x 3.18 mm)

1шт.

23

A77280

SPRING

- return, brake piston, 1-13/64" free length (30.56 mm)

3шт.

24

166-1005

12 PT SCREW,Lock, Flg, 3/8" - 16 x 2", Gr 8

SCREW - 3/8 x 2", 12 point head

3шт.

25

A138461

CARRIER - PTO clutch (Has two .250 holes in small end 180 degrees apart)

1шт.

26

A58384

RING

- seal, clutch carrier, 3 x 3-3/16 x 3/32" (76.2 x 80.96 x 2.38 mm)

3шт.

27

A67155

PISTON

- clutch, PTO

1шт.

28

A63258

SEAL

- internal, clutch piston, 1-9/16 x 1-13/16 x 3/32" (39.69 x 46.04 x 2.38 mm)

1шт.

29

A63259

SPRING

- internal seal, clutch piston

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - external, clutch piston, 4-13 x 5-1/8 x 3/32" (122.24 x 130.18 x 2.38 mm)

1шт.

31

G102094

SPRING

- external seal, clutch piston (Replaces A50626)

1шт.

32

A63260

SPRING

- piston return, 1-3/4" free length (44.45 mm)

1шт.

33

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

35

A67156

PLATE

- steel, PTO clutch (External teeth)

11шт.

36

A67130

PLATE

- sintered, PTO clutch (Internal teeth)

11шт.

37

A50643

PLATE

- back-up, PTO clutch

1шт.

38

A50639

RING

- snap, back-up plate

1шт.

40

A138451

SHAFT

- input, PTO clutch and hydraulic pump drive

1шт.

41

A138452

BUSHING

- shaft, 1-1/2 x 1-3/4 x 1" (38.1 x 44.45 x 25.4 mm)

1шт.

42

41-1024

PLUG,Cup, 1 1/2"

- cup, 1-1/2" (38.1 mm)

1шт.
