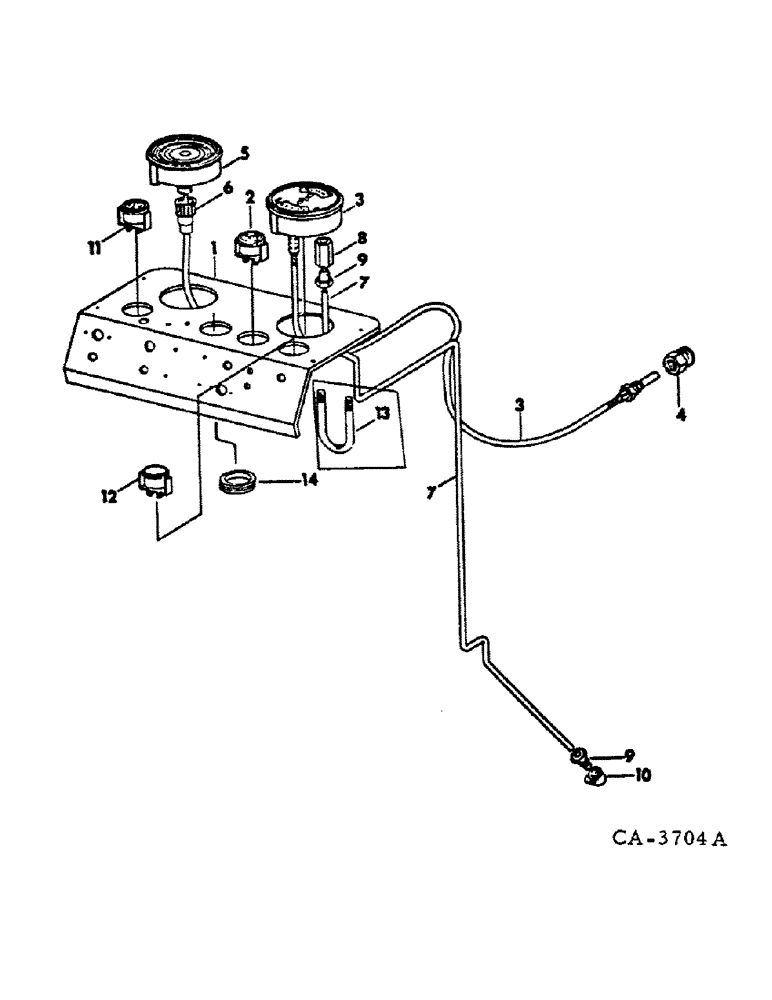

Запчасти Case IH 4366 (11-01) - INSTRUMENTS, PANEL, GAUGES AND PIPING, 4366 TRACTOR Instruments

1

69849C1

LARGE PLATE

PANEL ASSY, instrument, Replaces 68665C1

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc h/whd tap

4шт.

2

533990R1

GAUGE ASSY.

GAUGE ASSY, charge indicator

1шт.

3

534057R2

CLUSTER

GAUGE ASSY, cluster

1шт.

4

51510DA

RESTRICTOR

BUSHING, capillary tube bulb

1шт.

5

67934C1

GAUGE ASSY.

GAUGE ASSY, speedometer/tachometer

1шт.

6

393328R93

CABLE PULLING GRIP

CABLE ASSY, tachometer flexible drive

1шт.

7

68656C1

TUBE,0.125" OD, 40.2, 25.9" Length

oil pressure indicator

1шт.

8

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, oil pressure indicator tube, to connect tube to indicator

1шт.

9

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting, oil pressure indicator tube

2шт.

10

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

5/16-24 hi-duty tube fitting, male pipe oil pressure indicator tube

1шт.

11

533992R1

GAUGE ASSY.

RECEIVING UNIT ASSY, electric fuel gauge

1шт.

12

533991R1

GAUGE ASSY.

INDICATOR ASSY, electric air cleaner

1шт.

13

69845C1

BOLT

U-BOLT

1шт.

Serial nos. 7504, 7507, 7508, 7509, 7511, 7512, 7513, 7534, 7540, 7545 and 7547

1шт.

14

69850C1

GROMMET

steering column

1шт.
