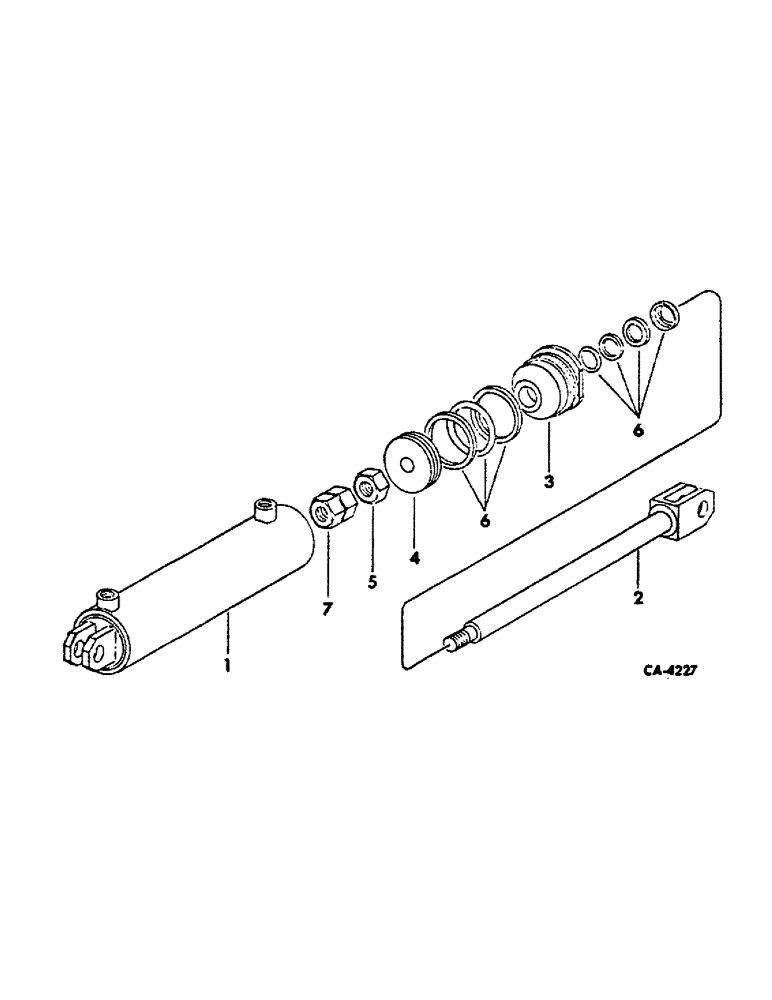

Запчасти Case IH 4366 (10-26) - HYDRAULICS, POWER STEERING CYLINDERS, 4366 TRACTORS WITH SERIAL NO. 8271 AND BELOW (07) - HYDRAULICS

69538C91

CYLINDER

ASSY, steering, Order cylinder 71341C91, two elbows 9410977 & two o-ring 570828R1, tractors w/aurelius cylinder w/o code and .25 inch step plate, Consists of all marked parts Unit A

2шт.

CYLINDER ASSY, steering, On order for cylinder 70397C91, furnish cylinder 71343C91, two elbows 9410977 and two o-rings 570828R1, tractors w/aurelius cylinder stamped "O" on end cap and w/o .25 inch step plate, Consists of all marked parts Unit B

2шт.

70772C91

CYLINDER

ASSY, steering, Order cylinder 71342C91, two elbows 9410977 & two o-ring 570828R1, tractors w/central steel cylinder coded with and without code "C" and w/.25 inch step plate, Consists of all marked parts Unit C

2шт.

CYLINDER ASSY, steering, On orders for cylinder 70887C91, furnish cylinder 71344C91, two elbows 9410977 & two o-rings 570828R1, tractors w/central steel cylinder coded with "O" and .25 inch step plate and with or without code "C"

2шт.

Consists of all marked parts Unit D

1шт.

1

71153C1

TUBE ASSY, cylinder, Units A and B

1шт.

1

71157C1

TUBE

ASSY, cylinder, Units C and D

1шт.

2

71154C1

SHAFT

ASSY, cylinder, Units A and B

1шт.

2

71158C1

ROD

SHAFT ASSY, cylinder, Units C and D

1шт.

3

71155C1

GLAND, end, Units A and B

1шт.

3

71159C1

GUIDE

GLAND, end, Units C and D

1шт.

4

71156C1

PISTON

Units A and B

1шт.

4

71160C1

PISTON

Units C and D

1шт.

5

217216

NUT

1-14 znd hex, Units A and C

1шт.

6

70777C1

SEAL KIT

seal and o-ring service, Units A and B

1шт.

6

134407C3

SEAL KIT

KIT, seal and o-ring service, Units C and D

1шт.

7

71161C1

STOP

Units B and D

1шт.
