(15-01) - WHEELS AND TRACTION, FRONT AND REAR WHEELS

Запчасти Case IH 4386 (15-01) - WHEELS AND TRACTION, FRONT AND REAR WHEELS Wheels & Traction

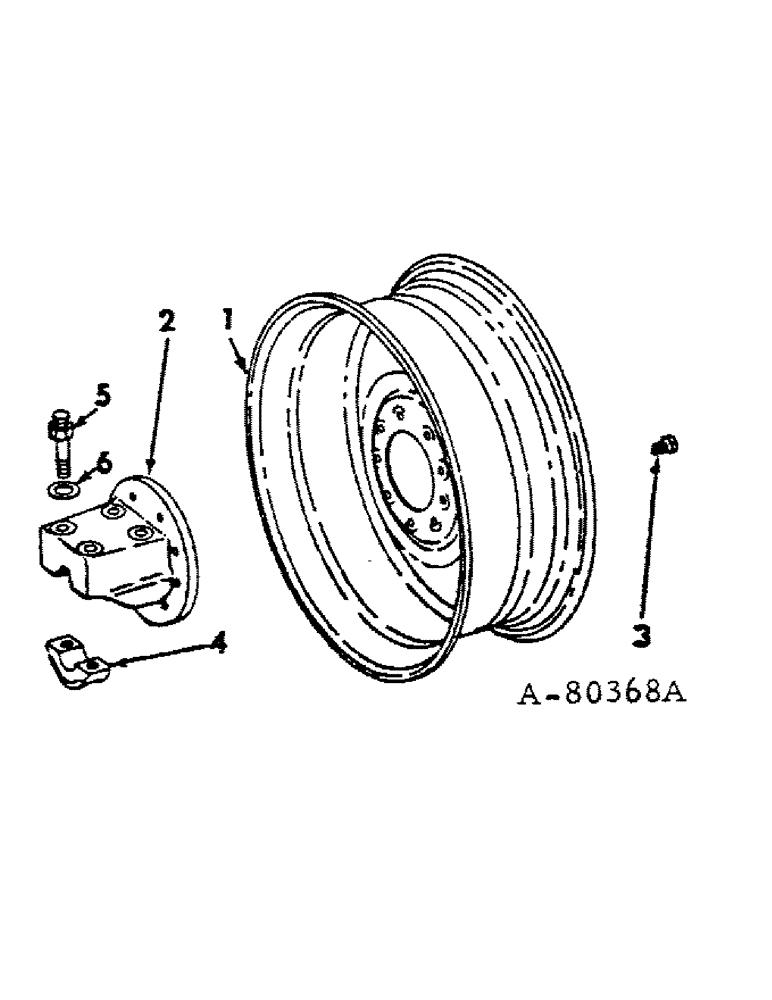

Схема запчастей Case IH 4386 - (15-01) - WHEELS AND TRACTION, FRONT AND REAR WHEELS Wheels & Traction
3
2
1
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

114338C1

WHEEL

ASSY, disc w/DW20-26 rim, For tire 23.1-26, outer wheel when dualing

1шт.

1

110272C1

RIM

WHEEL ASSY, disc w/DW20-26 rim, inner reinforced wheel when dualing

1шт.

1

114334C1

WHEEL ASSY.

WHEEL ASSY, disc w/DW20-30 rim, For tire 23.1-30, outer wheel when dualing

1шт.

1

109709C1

WHEEL

ASSY, disc w/DW20-30 rim, inner reinforced wheel when dualing

1шт.

1

114337C1

RIM

WHEEL ASSY, disc w/DW16-34 rim, For tire 18.4-34, outer wheel when dualing

1шт.

1

110271C1

WHEEL ASSY.

WHEEL ASSY, disc w/DW16-34 rim, inner reinforced wheel when dualing

1шт.

1

114335C1

RIM

WHEEL ASSY, disc w/W16L-38 rim, For tire 18.4-38, outer wheel when dualing

1шт.

1

110270C1

WHEEL ASSY, disc w/W16L-38 rim, inner reinforced wheel when dualing

1шт.

1

114339C1

RIM

WHEEL ASSY, disc w/W18L-38 rim, For tire 20.8-38, outer wheel when dualing

1шт.

1

109708C1

WHEEL

ASSY, disc w/W18L-38 rim, inner reinforced wheel when dualing

1шт.

1

114336C1

WHEEL ASSY.

WHEEL ASSY, disc w/DW21-32 rim, For tire 24.5-32 10 ply, outer wheel when dualing

1шт.

1

109710C1

WHEEL ASSY.

WHEEL ASSY, disc w/DW21-32 rim, inner reinforced wheel when dualing

1шт.

1

68253C2

RIM

WHEEL ASSY, disc w/DW27-32 rim, For tire 30.5-32

1шт.

2

110415C1

HUB

dual wheel, 1 per wheel

1шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, wheel mounting, 9 per wheel

1шт.

4

68806C1

CLAMP

wheel hub, 2 per hub

1шт.

5

539827R2

STUD

ASSY, wheel hub clamp, 4 per hub

1шт.

6

384697R1

WASHER

wheel hub clamp stud, 4 per hub

1шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

385718R2

EXTENSION

wrench

1шт.

20522R1

BOLT

5/8-NF x 2-1/4 type 8

24шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 harden plain

24шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 harden phc

24шт.

110142C1

STEP

ASSY, mounting

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
