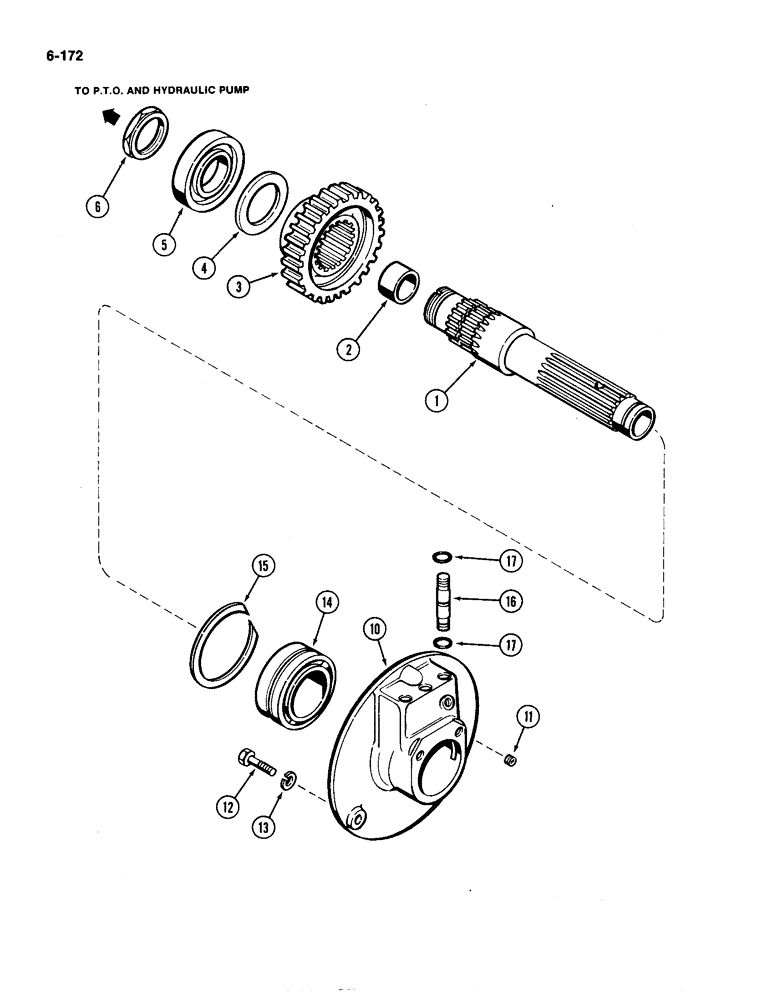

Запчасти Case IH 4490 (6-172) - TRANSMISSION CLUTCH ASSEMBLY, PLANETARY OUTPUT DRIVE SHAFT (06) - POWER TRAIN

1

A158316

SHAFT

ASSEMBLY - output (Transmission Serial No. 16200408 and after), Includes: Ref. 2

1шт.

1

A154944

SHAFT

ASSEMBLY - output, Includes: Ref. 2

1шт.

Use prior to transmission serial no. 16200408. For repairs order A158316 shaft, A157318 gear, and A157950 lock nut.

1шт.

2

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- shaft

1шт.

3

A157318

DRIVE

GEAR - drive, intermediate shaft (37 external teeth) (Replaces A154942)

1шт.

3

A154942

GEAR

- drive, 37 external teeth (Order A158316 shaft and A157950 lock nut)

1шт.

In Artwork, Ref #3 Gear, is not straight at the gear teeth.

1шт.

4

A154943

SPACER

- drive gear

6шт.

5

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, output shaft

1шт.

6

A157950

NUT

- lock, rear bearing (Replaces A76716)

1шт.

10

A152329

CARRIER

- oil distributor

1шт.

11

221-841

PLUG

- 1/4" PT hex socket

3шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

A152343

BEARING, ROLLER, CYL,65mm ID x 105mm OD x 54mm W

BEARING - carrier

1шт.

15

A138737

RING

- snap, carrier bearing

1шт.

16

A76120

TUBE

- oil

3шт.

17

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- tube (Included in A46286 kit. See Figure 6-170)

6шт.

A153169

CLUTCH

ASSEMBLY - powershift and planetary (Complete Unit) (Includes parts listed on Figure 6-172)

1шт.
