(9-408) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12036610 AND AFTER

Запчасти Case IH 4490 (9-408) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12036610 AND AFTER (09) - CHASSIS/ATTACHMENTS

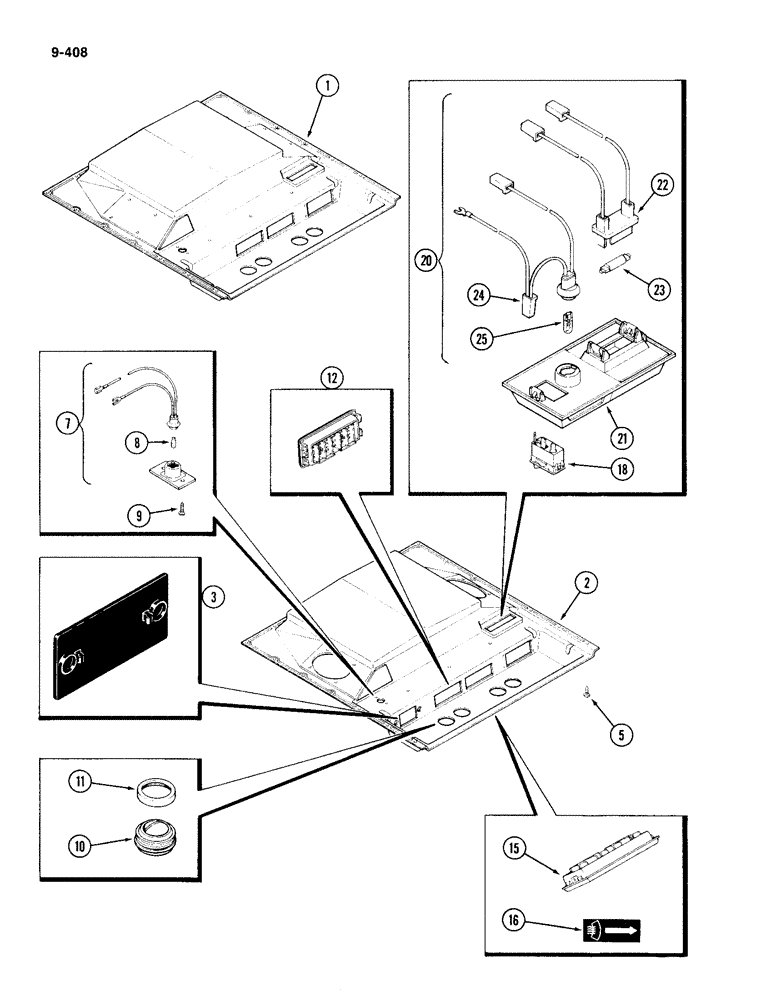

Схема запчастей Case IH 4490 - (9-408) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12036610 AND AFTER (09) - CHASSIS/ATTACHMENTS
9
7
18
23
15
12
25
2
10
3
22
11
21
5
8
16
20
1
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64498

ROOF LINING

HEADLINER - cab (without radio cut out)

1шт.

2

F64388

LINING

HEADLINER - cab (with radio cut out)

1шт.

3

F64278

COVER

- cut out (Used with Ref 2)

1шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" Phillips oval head

4шт.

7

F98171

LAMP

ASSEMBLY - console (Courtesy), Includes: Ref. 8

1шт.

8

W10478

LAMP

BULB - lamp (No. 168)

1шт.

9

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, #10-24 x 1/2" Phillips

2шт.

10

F64132

GUARD

LOUVER - air deflection, ball type

4шт.

11

F64131

RING

- retainer, louver

4шт.

12

F89948

GUARD

LOUVER - air deflection, retangular

2шт.

15

F98149

GUARD

LOUVER - defroster

1шт.

16

321-3842

DECAL

- defroster

1шт.

18

F64130

SWITCH

- dome lamp

1шт.

20

F64310

LAMP

ASSEMBLY - dome, cab, Includes: Ref. 21 - 25

1шт.

21

F64366

LAMP

HOUSING ASSEMBLY - dome lamp

1шт.

22

F64365

CONNECTOR, ELEC

MODULE - socket

1шт.

23

F64364

BULB,12V

- lamp (GE561)

1шт.

24

F64375

HARNESS

- wire, lamp

1шт.

25

F64363

BULB

- lamp (GE161)

1шт.
