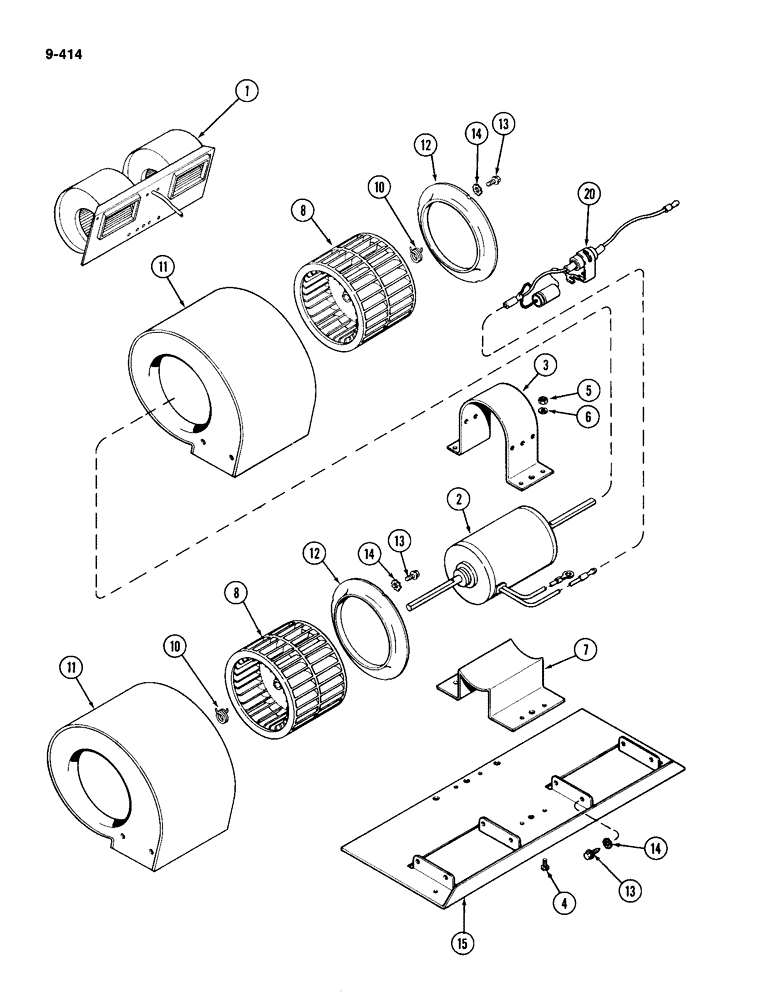

Запчасти Case IH 4490 (9-414) - CAB, BLOWER ASSEMBLY, WITH 3-23/64 INCH (85.33 MM) WIDE FAN, CAB SERIAL NUMBER 12054687 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab air, Includes: Ref. 2 - 15

1шт.

2

F45196

MOTOR, ELECTRIC

MOTOR - blower (Replaces F42775)

1шт.

3

F63438

CLAMP

- motor

1шт.

4

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" pan head

4шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

F63439

MOUNTING PARTS

MOUNT - motor

1шт.

8

F64551

BLOWER,Fan

- blower, 4-1/2" diameter x 3-23/64" wide (114.3 x 85.33 mm)

2шт.

10

F44948

SPRING

- lock, fan

2шт.

11

F89797

HOUSING

- blower

2шт.

12

F63655

RETAINER

EYE - inlet

2шт.

13

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex washer head

12шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

12шт.

15

F63616

BASE

- mounting

1шт.

20

F64184

CAPACITOR

- radio noise

1шт.
