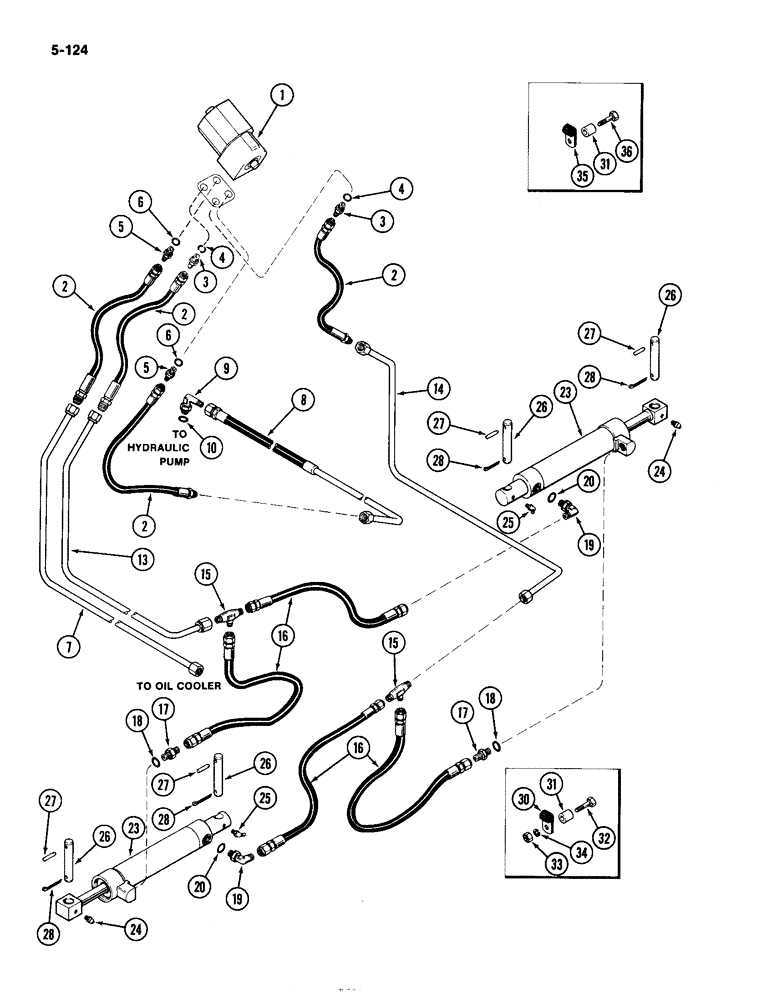

Запчасти Case IH 4490 (5-124) - FRONT STEER HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

PUMP AND VALVE ASSEMBLY - steering (See Figure 5-136 or 5-138)

1шт.

2

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Valve parts 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

3

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restrictive, cylinder hoses (1/2" tube), Includes: Ref. 4

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - IN and OUT ports (1/2" tube), Incl. Ref 6

2шт.

7

A138365

TUBE

- oil cooler inlet

1шт.

8

A162279

HOSE

- pressure, hydraulic pump (Replaces A151131)

1шт.

8

A151131

HOSE

- pressure, hydraulic pump (Replaced by A162279) (Used only prior to P.I.N. 8860322)

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree, 1/2" tube x 3/4" - 16 (Replaces 218-5106), Includes: Ref. 10

1шт.

13

A138364

TUBE

- RH steering cylinder

1шт.

14

A138366

TUBE

- LH steering cylinder

1шт.

15

218-594

TEE,3/4"-16, 37 Degree

- 1/2" tube x 1/2" tube x 3/4" - 16

2шт.

16

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

Steering Cylinder, Replaces D64604) 0.38" ID x 22.00", SAE 100R2A

4шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4" - 16, Incl. Ref 18

2шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube, Includes: Ref. 20 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

O-RING - 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width) (Replaces 218-5106)

1шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY - front wheel steer (See Figure 5-140 or 5-142)

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

25

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 1/4" -28, 45 degree

2шт.

26

A160382

PIN,25.4mm OD x 132.08mm L

- cylinder anchor

4шт.

27

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

4шт.

28

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

30

49838

CLAMP

- tube

6шт.

31

A76093

BUSHING

SPACER - clamp

2шт.

32

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

R14668

CLAMP

- pressure hose

1шт.

36

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - 3/8 x 1-1/4" hex head Taptite

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID X 3/32" width (16.36 ID x 2.21 mm width)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
