(5-128) - REAR STEER HYDRAULICS, PRIORITY AND CONTROL VALVES, PRIOR TO P.I.N. 8860450

Запчасти Case IH 4490 (5-128) - REAR STEER HYDRAULICS, PRIORITY AND CONTROL VALVES, PRIOR TO P.I.N. 8860450 (05) - STEERING

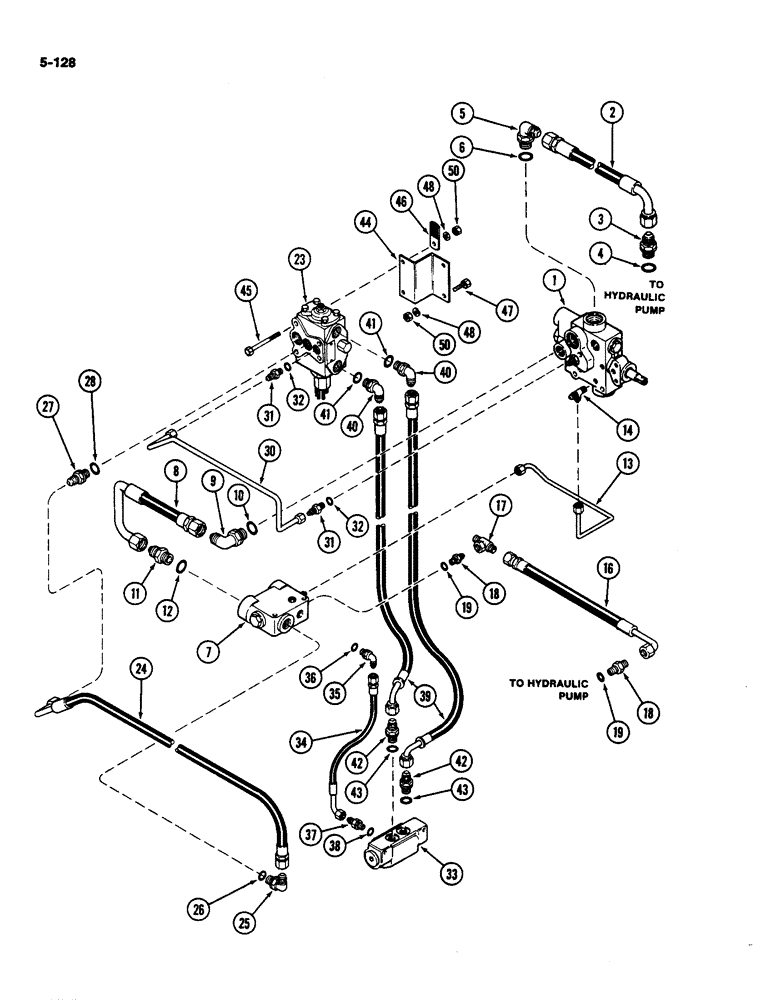

Схема запчастей Case IH 4490 - (5-128) - REAR STEER HYDRAULICS, PRIORITY AND CONTROL VALVES, PRIOR TO P.I.N. 8860450 (05) - STEERING
13
31
10
32
38
35
9
4
24
40
34
17
28
43
6
19
12
30
48
11
42
32
45
50
25
43
50
3
41
14
7
41
44
39
27
8
18
1
47
16
23
46
40
48
18
26
19
2
42
31
37
33
36
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 8-250)

1шт.

2

A148749

HOSE

- pump to regulator valve

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4" tube x 1-5/16" -12 (at pump), Incl. Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width)

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, 3/4" tube x 1-1/16" - 12 (at regulator valve), Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

7

A145582

VALVE

ASSEMBLY - priority (See Figure 5-146)

1шт.

8

A152302

HOSE

- regulator valve to priority valve

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, 3/4" tube x 1-1/16" -12 (at regular valve), Incl. Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4" tube x 1-1/16" -12 (at priority valve), Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

13

A151100

TUBE

- return, priority valve to regulator valve

1шт.

14

218-611

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Run

CONNECTOR - regulator valve, 1/4" tube x 1/8" PT x 7/16" -20

1шт.

16

A161535

TUBE

HOSE - pump to priority valve

1шт.

17

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR - priority valve, 3/8" tube x 3/8" tube x 9/16" -18

1шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - 3/8" tube x 7/16" -20, Includes: Ref. 19

2шт.

19

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - control, rear steer (See Figure 5-148)

1шт.

24

A152227

HOSE

- priority valve to control valve

1шт.

25

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube (at priority valve), Includes: Ref. 26 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4" -16 (at control valve), Incl. Ref 28

1шт.

30

A160447

TUBE

- regulator valve to control valve

1шт.

31

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8" tube x 9/16" -20, Incl. Ref. 32

2шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - check, rear steer (See Figure 5-150)

1шт.

34

A161535

TUBE

HOSE - priority valve to check valve

1шт.

35

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, 3/8" tube x 7/16" -20 (at priority valve), Incl. Ref. 36

1шт.

36

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8" tube x 9/16" -20 (at check valve), Incl. Ref. 38

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

39

A160449

HOSE

- control valve to check valve

2шт.

40

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube (at control valve), Includes: Ref. 41 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4" -16 (at check valve), Incl. Ref 43

2шт.

44

A151864

SUPPORT

- steering valve

1шт.

45

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex head

2шт.

46

A37179

CLIP

- hose

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex head

2шт.

48

92-6

LOCK WASHER,3/8"

4шт.

50

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
