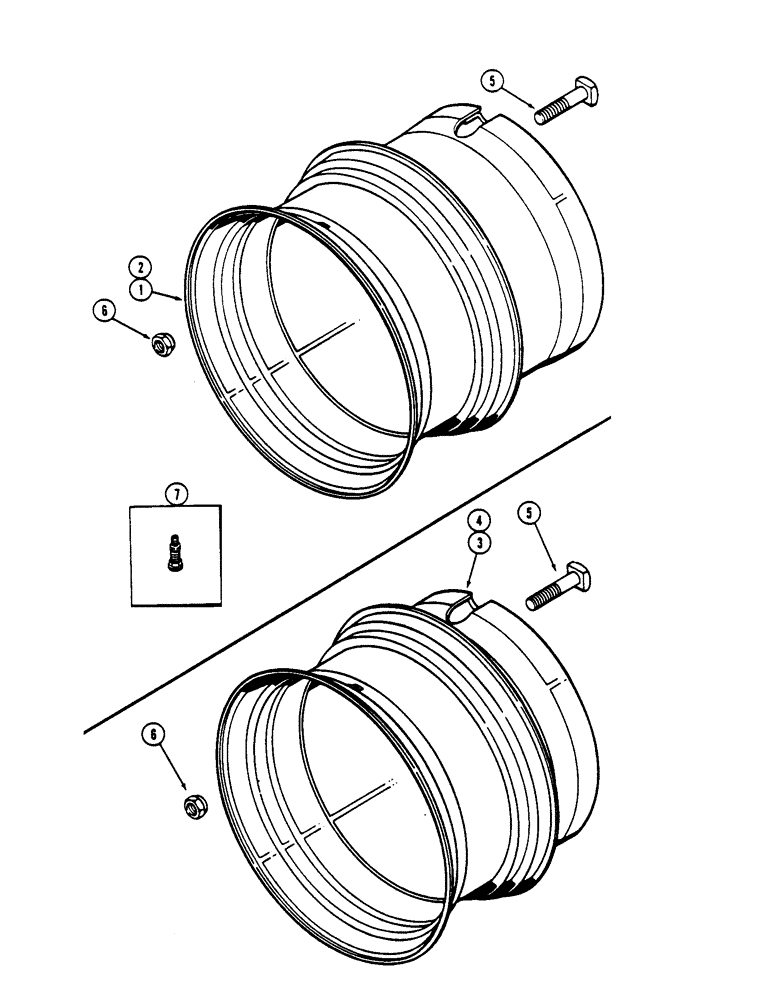

Запчасти Case IH 4690 (6-216) - DUAL WHEELS (06) - POWER TRAIN

1

A160663

WHEEL

- outer dual, wide spacing, 18.4 x 34" tire (967.36 x 863.6 MM)

4шт.

2

A162802

WHEEL

- outer dual, narrow spacing, 18.4 x 34" (967.36 x 863.6 MM) tire for 120" (3 048 MM) row crop (Replaces A161817)

4шт.

3

A160529

RIM

WHEEL - outer dual, wide spacing, 20.8 x 34" tire (528.32 x 863.6 MM)

4шт.

4

A148140

RIM

WHEEL - outer dual, narrow spacing, 20.8 x 34" tire (967.36 x 863.6 MM) (For 120" (3048 MM) row crop)

4шт.

4

A161512

SCREW

WHEEL - outer dual, for 18.4 x 38" tire (467.4 x 965.2 MM)

4шт.

4

A161513

WHEEL

- outer dual, for 20.8 x 38" tire (967.36 x 965.2 MM)

4шт.

5

A160853

SQUARE BOLT

- wheel (3/4" x 5-1/4" NC square head)

40шт.

6

A160864

WHEEL NUT

- wheel bolt (3/4" NC hex)

40шт.

7

A20058

VALVE STEM

- Air, tubeless tire

1шт.
