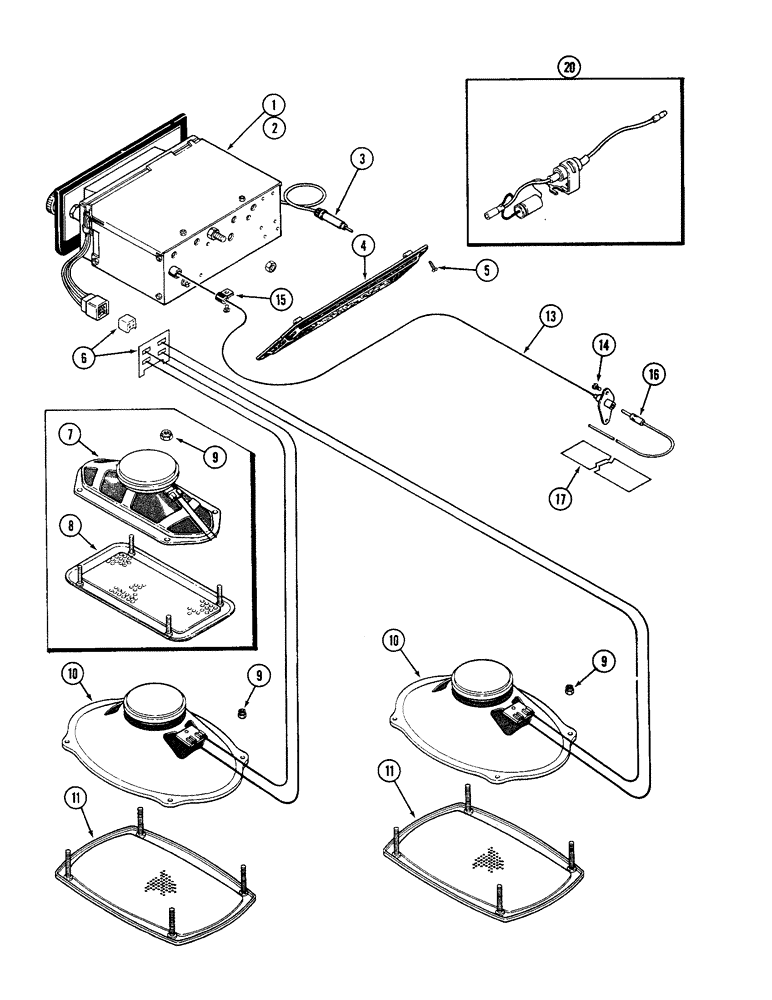

Запчасти Case IH 4690 (9-430) - CAB, RADIO AND SPEAKERS (09) - CHASSIS/ATTACHMENTS

1

A77319

RADIO - AM only

1шт.

2

A164224

RADIO - AM-FM (Replaces A77320)

1шт.

3

223-38

FUSE,3 Amp, Type 3AG

- power lead in, 3 amp

1шт.

4

F64386

COVER

- radio rear

1шт.

5

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - self-tapping, #8-18 x 1/2" round head

4шт.

6

F64727

HARNESS

CABLE - speaker lead (Replaces F64044)

1шт.

7

F63595

SPEAKER

- radio (Prior to cab serial no. 12036610)

2шт.

8

F63593

GUARD

GRILLE - speaker (Prior to cab serial no. 12036610)

2шт.

9

131-29

LOCK NUT,#8-32, GB

NUT - lock, #8-32 hex

8шт.

10

F64496

SPEAKER

- radio (Cab serial no. 12036610 and after)

2шт.

11

F64497

GUARD

GRILLE - speaker (Cab serial no. 12036610 and after)

2шт.

13

F64183

CABLE

- antenna

1шт.

14

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" round head

2шт.

15

A20541

CLIP

- cable

2шт.

16

F64182

CABLE

- aerial

1шт.

17

F64186

TAPE

- aerial

1шт.

20

F64184

CAPACITOR

- noise, blower motor

1шт.
