Запчасти Case IH 4694 (9-426) - SEAT, AIR/OIL SUSPENSION, P.I.N. 8866221 AND AFTER (09) - CHASSIS/ATTACHMENTS

A181029

SEAT

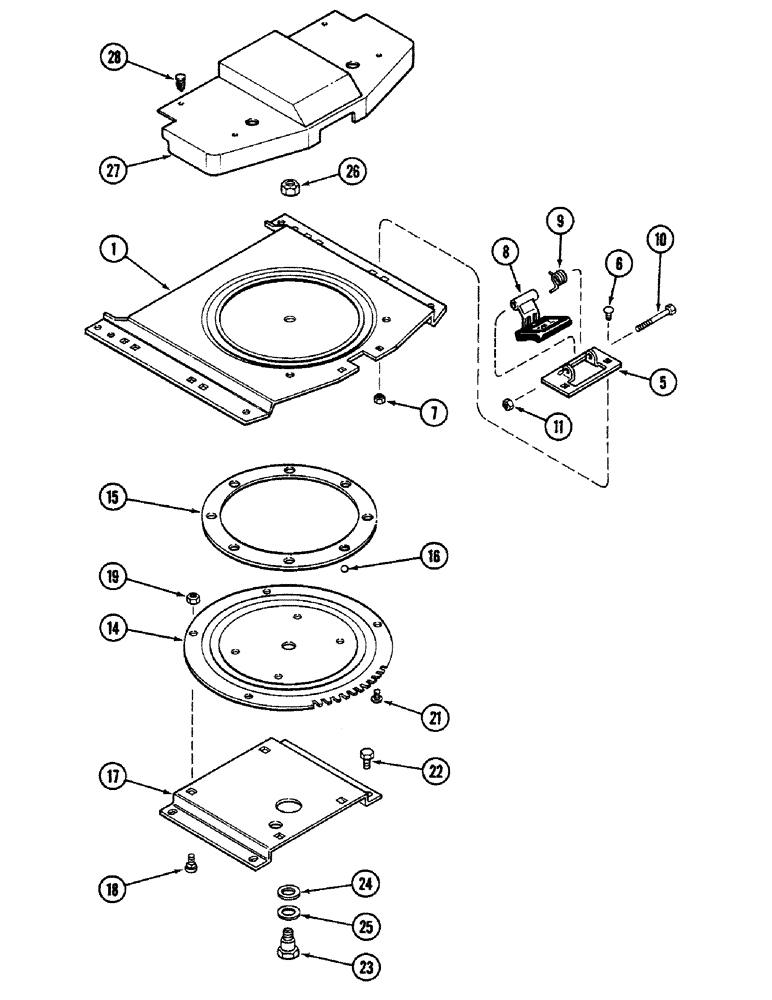

ASSEMBLY - air/oil suspension, Includes: seat isolator assembly, seat swivel assembly and Ref. 1 - 28 in this figure and parts in Figures 9-422, 9-424 and 9-428

1шт.

A49818

HOUSING

ISOLATOR ASSEMBLY - seat, Includes: seat swivel assembly and Ref. 1 - 26 in this figure and parts in Figure 9-424

1шт.

A49822

PLATE

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 26

1шт.

Included in A49818 kit.

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - top, swivel (Order A496822) (Reference no. A49551)

1шт.

5

A49830

SUPPORT

BRACKET - latch, swivel

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A49831

LATCH

ASSEMBLY - swivel

1шт.

9

A49554

SPRING

- latch

1шт.

10

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

14

A49556

PLATE

- latch

1шт.

Included in A49818 kit.

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

Included in A49818 kit.

1шт.

16

211-315

BALL,1/2" Dia

- 1/2 inch (13 MM) diameter

8шт.

17

A49557

PLATE

- mounting, swivel

1шт.

Included in A49818 kit.

1шт.

18

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

21

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- pan head, 1/4 NC x 1/2 inch

4шт.

22

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

27

A180423

SHROUD

- swivel

1шт.

28

A49622

CLIP

- retaining

4шт.
