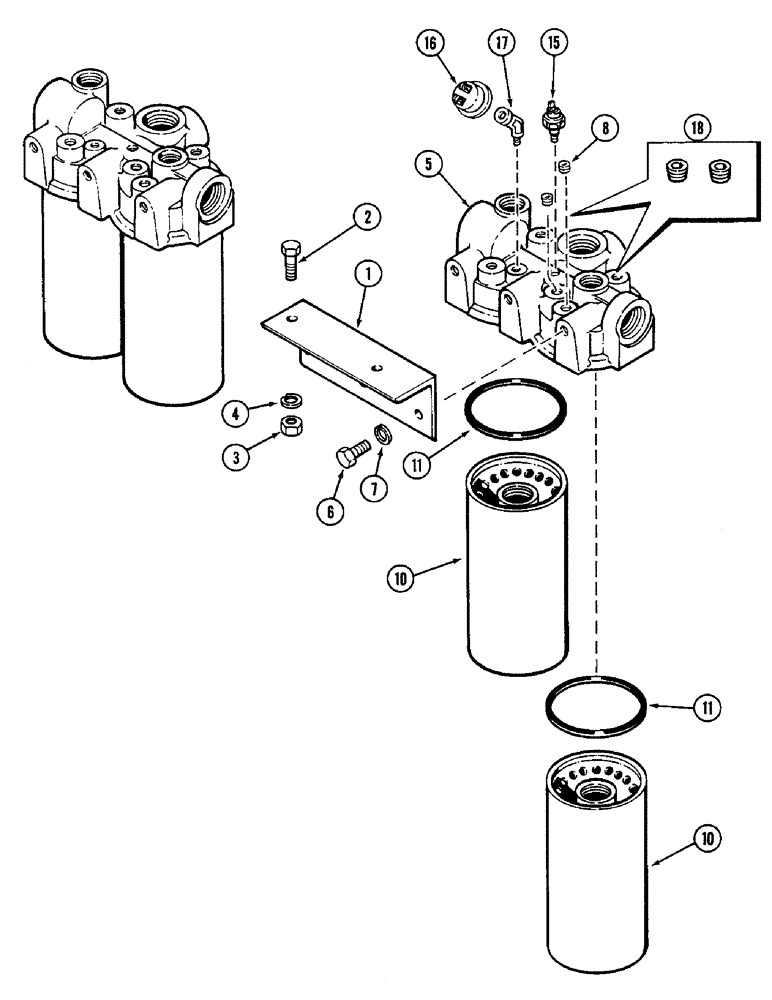

Запчасти Case IH 4890 (8-264) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

1

A146862

BRACKET

- filter mounting

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex. (Grade 5)

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

A143469

HOUSING

- filter

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

221-841

PLUG

- 1/4" PT hex. socket

2шт.

A161846

FILTER

KIT - replacement, hydraulic filter element (Replaces A149964), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

2шт.

11

A139281

GASKET

- element

2шт.

15

A66737

SWITCH, PRESSURE

SWITCH - filter pressure sender

1шт.

16

A161461

SWITCH

- transmission differential pressure

1шт.

17

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 1/8" PT 45 degree (Replaces 221-401

1шт.

18

221-841

PLUG

- 1/4" PT hex. socket (Without PTO)

2шт.
