(9-454) - CAB, RADIO AND SPEAKERS

Запчасти Case IH 4890 (9-454) - CAB, RADIO AND SPEAKERS (09) - CHASSIS/ATTACHMENTS

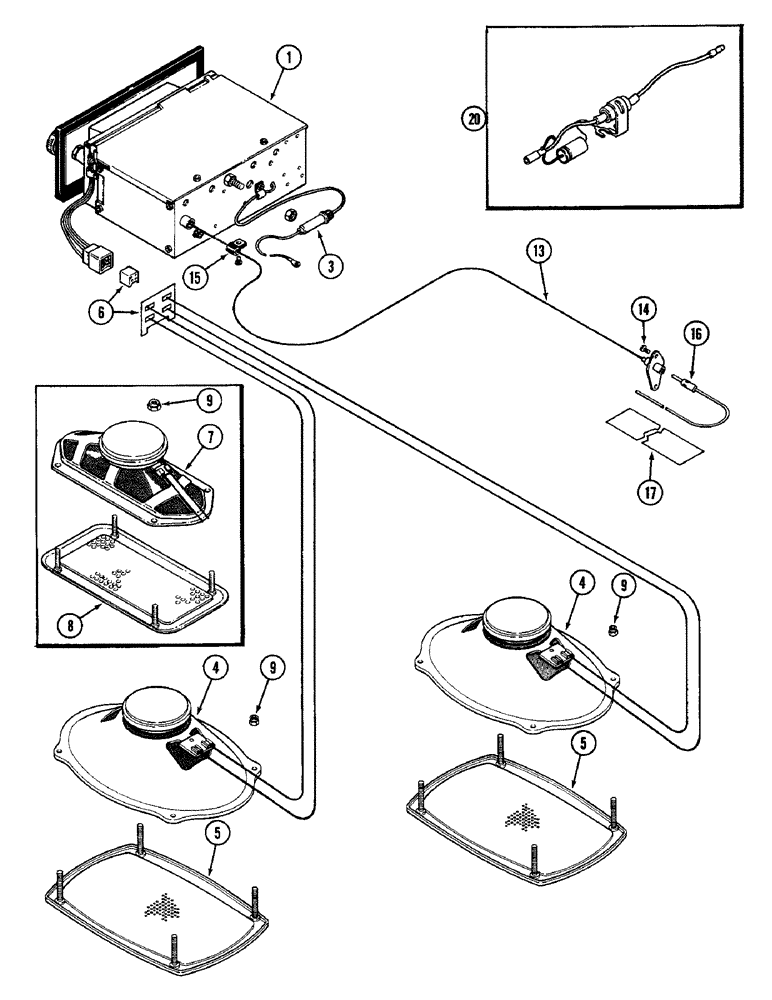

Схема запчастей Case IH 4890 - (9-454) - CAB, RADIO AND SPEAKERS (09) - CHASSIS/ATTACHMENTS
5
16
20
13
6
14
7
4
15
1
3
9
4
17
9
8
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A77319

RADIO - AM only

1шт.

1

A164224

RADIO - AM-FM (Replaces A77320)

1шт.

1

A77321

RADIO AND TAPE PLAYER - AM-FM

1шт.

1

A164223

RADIO

- AM-FM cassette

1шт.

3

223-38

FUSE,3 Amp, Type 3AG

- power lead in, 3 amp

1шт.

4

F64496

SPEAKER

- radio

2шт.

Cab serial no. 12036610 and after.

1шт.

5

F64497

GUARD

GRILLE - speaker

2шт.

Cab serial no. 12036610 and after.

1шт.

6

F64727

HARNESS

- speaker lead (Replaces F64044)

1шт.

7

F63595

SPEAKER

- radio

2шт.

Prior to cab serial no. 12036610.

1шт.

8

F63593

GUARD

GRILLE - speaker

2шт.

Prior to cab serial no. 12036610.

1шт.

9

131-29

LOCK NUT,#8-32, GB

NUT - lock, #8-32 hex.

8шт.

13

F64183

CABLE

- antenna

1шт.

14

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self tapping, #10-16 x 1/2" round head

2шт.

15

A20541

CLIP

- cable

2шт.

16

F64182

CABLE

- aerial

1шт.

17

F64186

TAPE

- aerial

1шт.

20

F64184

CAPACITOR

- noise, blower motor

1шт.
