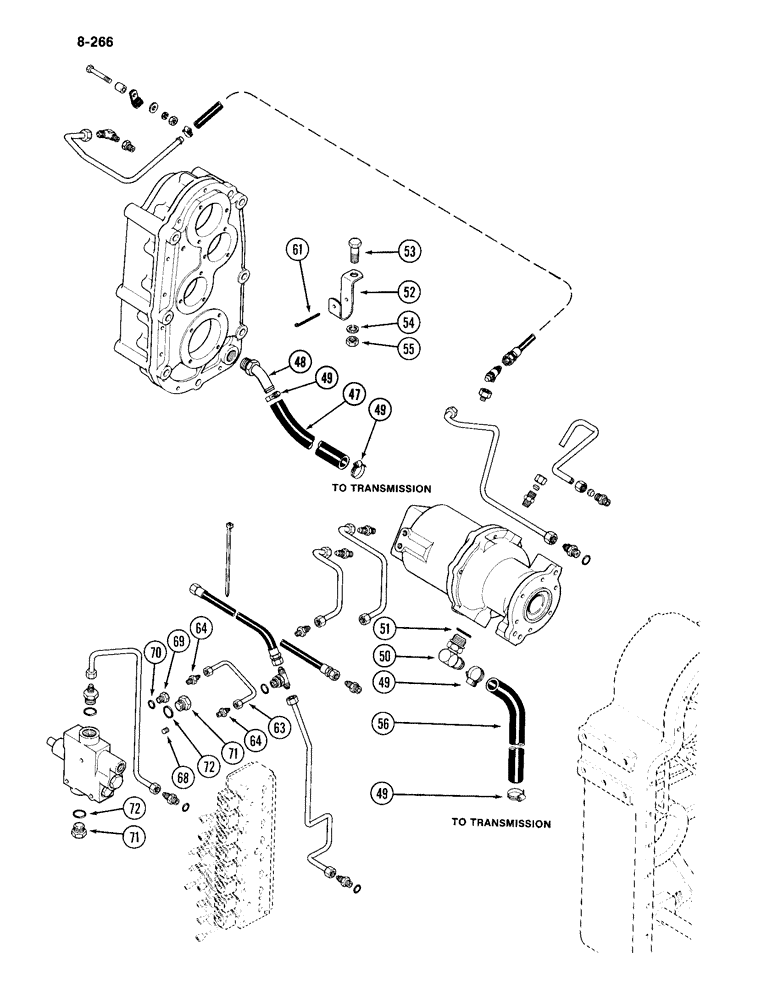

Запчасти Case IH 4994 (8-266) - TRANSMISSION HYDRAULIC CIRCUIT, PTO LUBE AND REGULATOR VALVE (CONTINUED) (08) - HYDRAULICS

47

W17738

HOSE

- PTO drain (Continued from Figure 8-264)

1шт.

48

A76171

TUBE

CONNECTOR - 45 degree, 1 PT x inch hose ID barb end

1шт.

49

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

4шт.

50

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree adjustable, 1 tube 1-5/16-12 thread x 1 inch hose barb end, Includes: Ref. 51

1шт.

51

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

52

A169271

BRACKET

CLAMP - PTO drain hose

1шт.

53

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

54

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

55

129-108

NUT,3/4"-10, G5

1шт.

56

L60366

HOSE

- clutch drain

1шт.

61

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 5/16 x 3 inch

1шт.

63

NLS

NO LONGER SERVICED

- drain, PTO brake

1шт.

64

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/4 tube 7/16-20 thread x 1/8 inch PT

2шт.

68

221-1849

PLUG

- square socket head, 1/8 inch PT

1шт.

69

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube, Incl. Ref. 70 Hex Hd, 9/16"-18 ORB

1шт.

70

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

71

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 3/4 tube 1-1/16 inch thread, Includes: Ref. 72

2шт.

72

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.
