(8-072) - LOAD CHECK REMOTE CONTROL VALVE ASSEMBLY, IF EQUIPPED, (CONT)

Запчасти Case IH 9330 (8-072) - LOAD CHECK REMOTE CONTROL VALVE ASSEMBLY, IF EQUIPPED, (CONT) (08) - HYDRAULICS

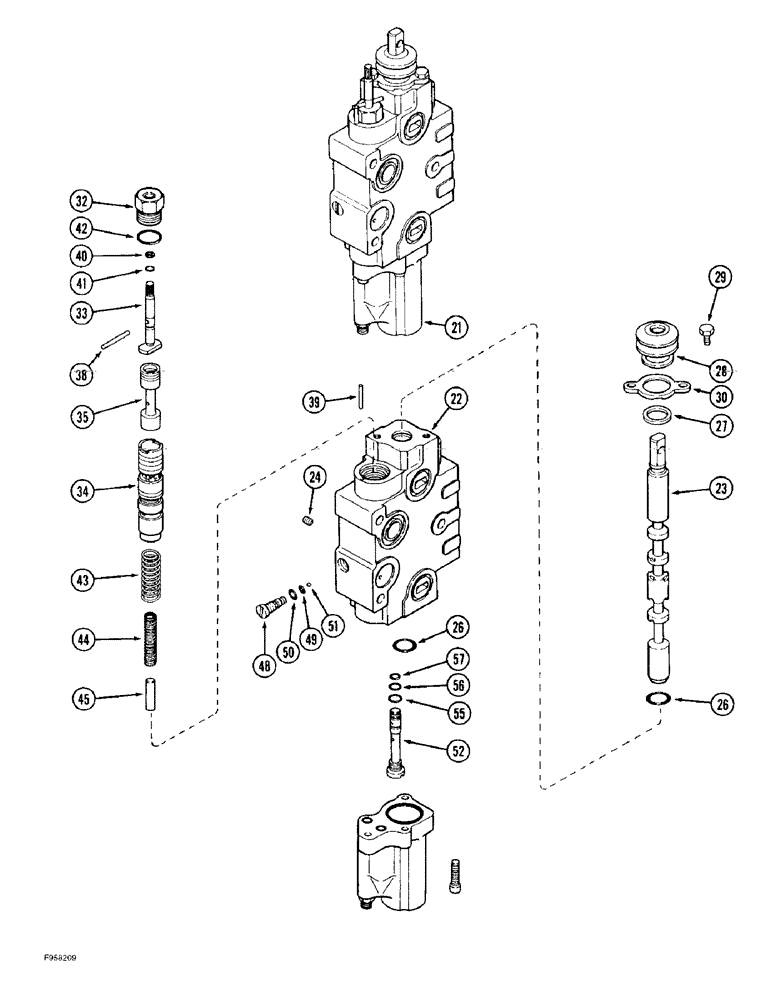

Схема запчастей Case IH 9330 - (8-072) - LOAD CHECK REMOTE CONTROL VALVE ASSEMBLY, IF EQUIPPED, (CONT) (08) - HYDRAULICS
55
48
34
23
29
33
22
51
40
49
39
35
44
41
45
38
28
43
27
24
42
57
56
21
52
26
50
26
32
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169456

VALVE

ASSEMBLY - remote control, no longer available, order component parts separately, continued, Includes: Ref. 21 - 57, 2 - 20 on Fig. 8-70 and 60 - 96 on Fig. 8-74

1шт.

21

A48945

HOUSING

BODY ASSEMBLY - valve

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

24

A47105

PLUG

- expansion

1шт.

26

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

27

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

28

A47188

COVER

- dust

1шт.

29

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- retainer

2шт.

30

A47196

RETAINER

- dust guard

1шт.

32

A48925

PLUG

- flow control

1шт.

33

A48929

SHAFT

- adjusting

1шт.

34

A48956

TUBE

- flow control

1шт.

35

A48957

SPOOL

- flow control

1шт.

38

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

39

138-1816

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

40

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

41

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

A48959

SPRING

- outer, flow control

1шт.

44

A48960

SPRING

- inner, flow control

1шт.

45

A48937

PIN

- guide, spring

1шт.

48

A47204

PLUG

BODY - shuttle

1шт.

49

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

50

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

51

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

1шт.

52

A47209

SPOOL

SHUTTLE ASSEMBLY - primary, Includes: Ref. 55 - 57

1шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

56

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

57

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Continued -009, 90 Duro, .208" ID x .070" Thk

1шт.
