(1-18) - PICTORIAL INDEX, TRANSMISSION LUBRICATION HYDRAULICS

Запчасти Case IH 9350 (1-18) - PICTORIAL INDEX, TRANSMISSION LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

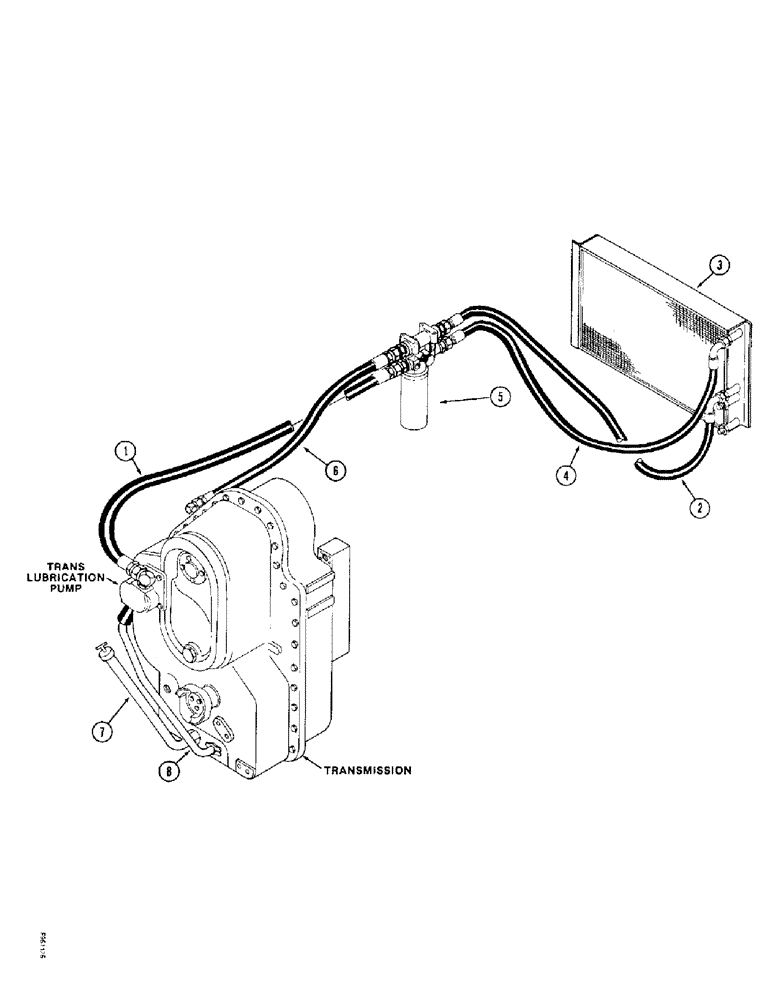

Схема запчастей Case IH 9350 - (1-18) - PICTORIAL INDEX, TRANSMISSION LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX
7
5
3
4
1
2
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Lubrication Supply Hose - Pump to Filter, 6-117, 6-119

1шт.

2

Oil Cooler Supply Hose, 6-117, 6-119

1шт.

3

Oil Cooler , 8-37

1шт.

4

Oil Cooler Return Hose, 6-117, 6-119, 8-15

1шт.

5

Oil Filter, 8-35

1шт.

6

Lubrication Supply Hose - Filter to Transmission, 6-117, 6-119

1шт.

7

Dipstick Tube, 6-117, 6-119

1шт.

8

Transmission to Pump Supply Tube, 6-117, 6-119

1шт.
