(1-28) - PICTORIAL INDEX, THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, PRIOR TO P.I.N. JEE0069665

Запчасти Case IH 9350 (1-28) - PICTORIAL INDEX, THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, PRIOR TO P.I.N. JEE0069665 (00) - PICTORIAL INDEX

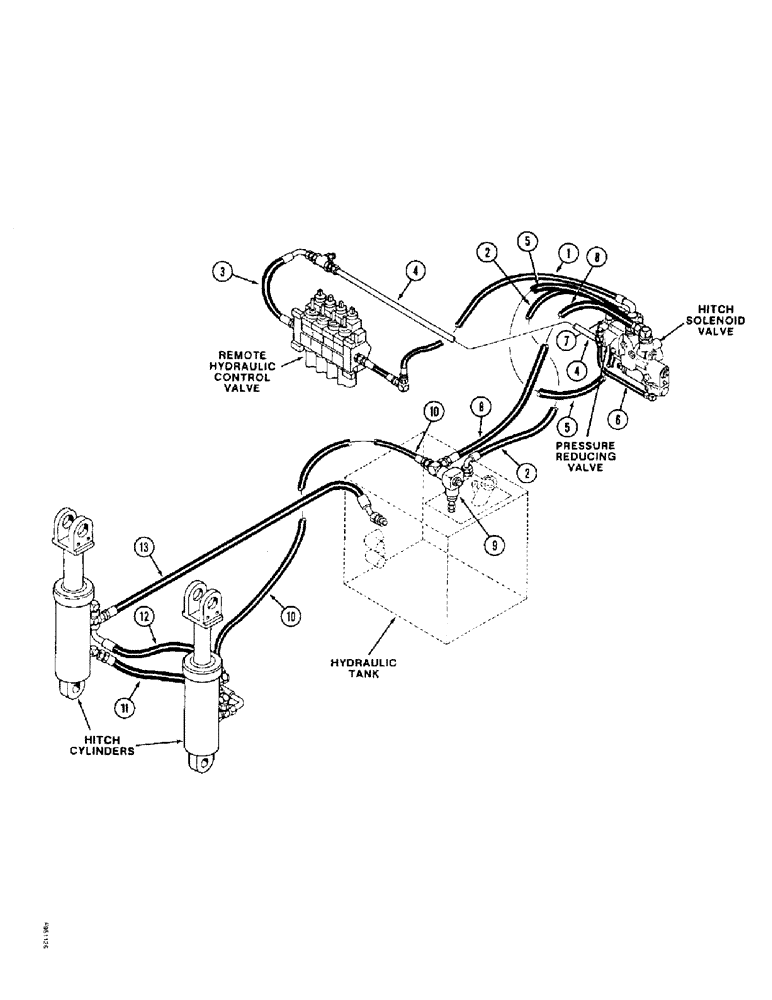

Схема запчастей Case IH 9350 - (1-28) - PICTORIAL INDEX, THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, PRIOR TO P.I.N. JEE0069665 (00) - PICTORIAL INDEX
5
7
8
4
5
10
10
6
8
4
11
2
3
1
12
9
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hitch Valve Supply Hose, 8-41

1шт.

2

Hitch Valve Drain Hose, 8-41

1шт.

3

Hydraulic Pump Pressure Sensing Hose, 8-41

1шт.

4

Hitch Valve Pressure Sensing Tube, 8-41

1шт.

5

Pressure Reducing Valve Drain Hose, 8-41

1шт.

6

Pressure Reducing Valve Hose, 8-41

1шт.

7

Pressure Reducing Valve Tube, 8-41

1шт.

8

Hitch Cylinder Supply Hose, 8-41

1шт.

9

Pressure Relief Valve, 8-41, 5-57

1шт.

10

Hitch Cylinder Supply Hose, 8-45

1шт.

11

Hitch Cylinder to Hitch Cylinder Supply Hose, 8-45

1шт.

12

Hitch Cylinder to Hitch Cylinder Drain Hose, 8-45

1шт.

13

Hitch Cylinder Drain Hose, 8-45

1шт.
