(9-038) - MOUNTS, CAB AND ROPS

Запчасти Case IH 9350 (9-038) - MOUNTS, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS

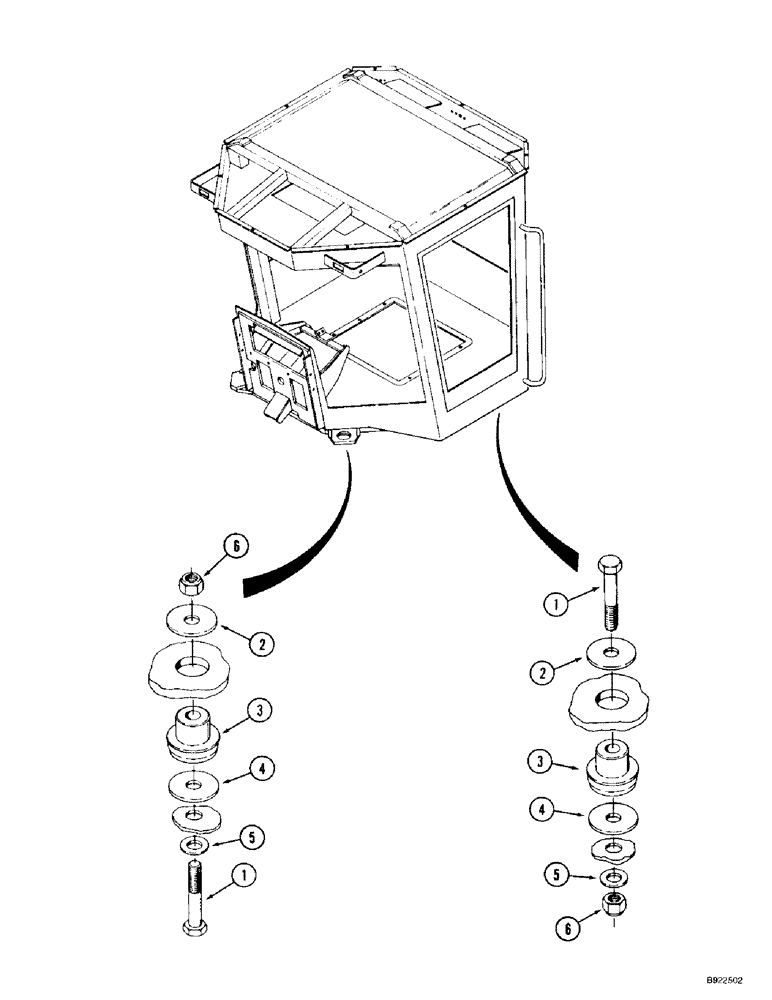

Схема запчастей Case IH 9350 - (9-038) - MOUNTS, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS
4
3
3
4
6
1
6
5
5
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

4шт.

2

60-5033T1

WASHER

- special, 1-1/16 x 3-1/4 x 1/4 inch thick, isolator mount

4шт.

3

60-4379T1

MOUNTING PARTS

MOUNT - rubber isolator

4шт.

4

60-4378T1

WASHER

SPACER - 1-1/16 x 3-5/8 x 1/4 inch thick

4шт.

5

19-5739

WASHER

- flat, special

4шт.

6

231-14416

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

4шт.
