(9-086) - CAB AIR CONDITIONER AND HEATER MODULE

Запчасти Case IH 9350 (9-086) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS

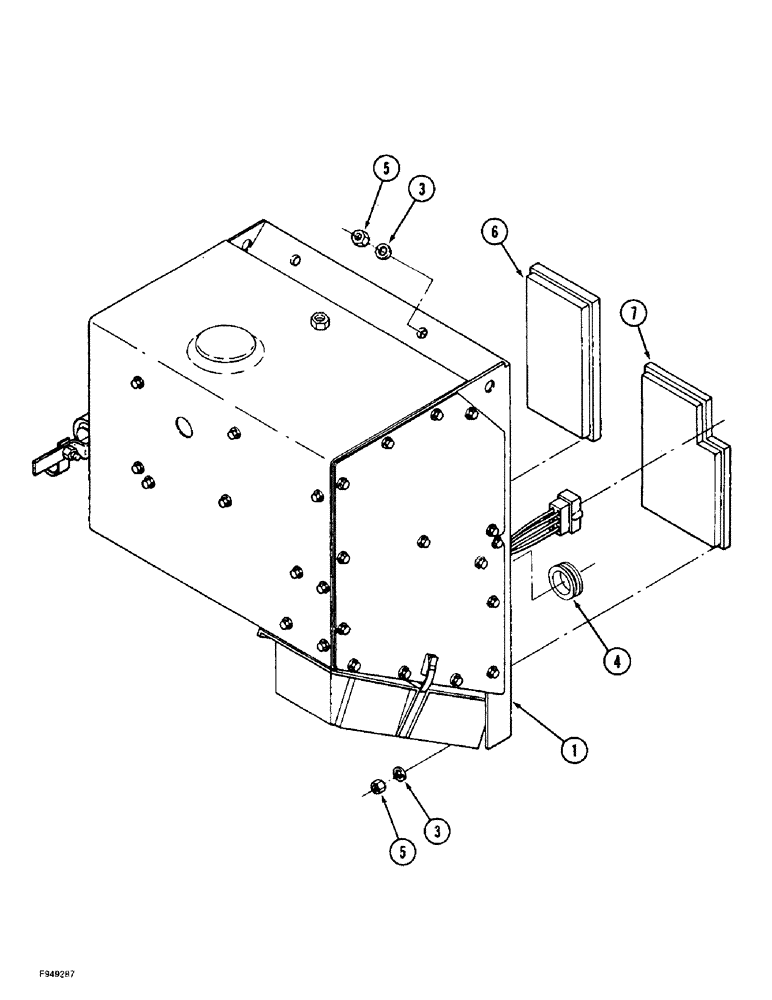

Схема запчастей Case IH 9350 - (9-086) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS
7
1
3
5
4
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-88 and 9-90

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

1-1051

GROMMET

- harness protection

1шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation, right-hand

1шт.

7

60-6706T1

FILTER

- air recirculation, cab, left-hand

1шт.
