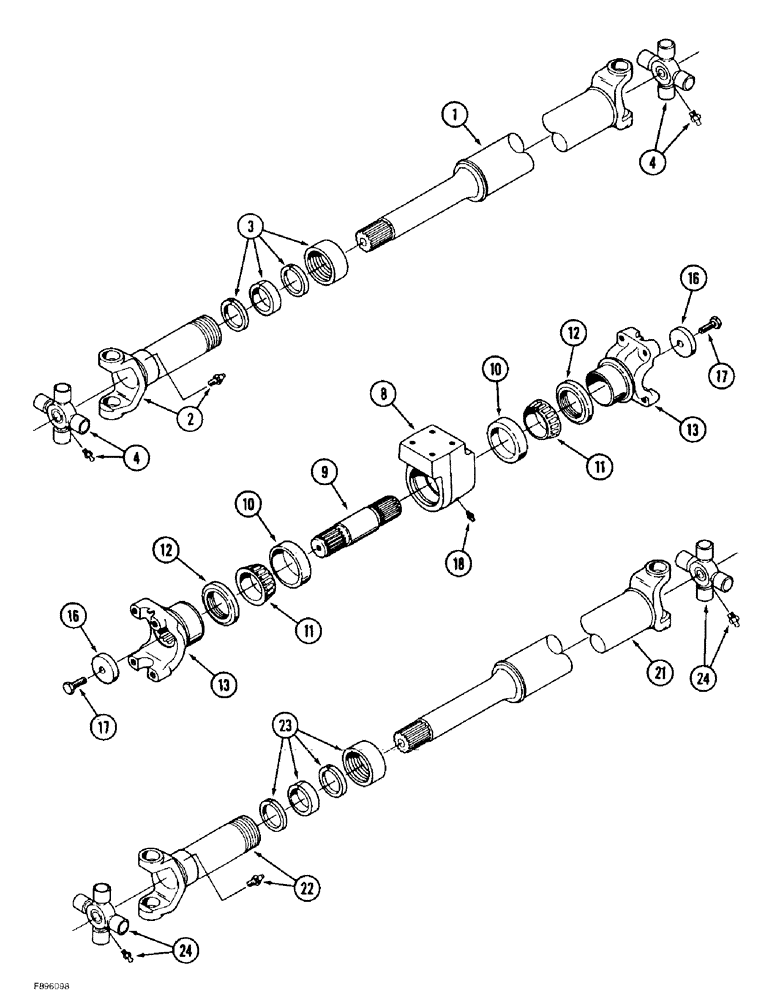

Запчасти Case IH 9370 (6-146) - PTO DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-7008T91

SHAFT

ASSEMBLY - drive, PTO, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged, includes a replaceable 219-1 grease fitting

1шт.

3

33-1001T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

4

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft

2шт.

5

S92378

RING, SNAP

RING - snap, not shown, only 2 required in this application

4шт.

90-7037T91

CHUTE (DOWNWARD)

HANGER ASSEMBLY - drive shaft bearing, Includes: Ref. 8 - 18

1шт.

8

90-6446T1

HOUSING

- hanger bearing

1шт.

9

90-1930T1

SHAFT

- drive, center

1шт.

10

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - tapered roller bearing

2шт.

11

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

CONE - tapered roller bearing

2шт.

12

90-1934T2

SEAL

- grease

2шт.

13

90-7006T1

YOKE

- shaft

2шт.

16

19-5864

WASHER

- flat, 5/8 x 2-3/4 x 1/2 inch

2шт.

17

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

90-7383T91

SHAFT

ASSEMBLY - drive, PTO rear, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - flanged, includes a replaceable 219-1 grease fitting

1шт.

23

33-1001T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

24

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft

2шт.

25

S92378

RING, SNAP

RING - snap, not shown, only 2 required in this application

4шт.
