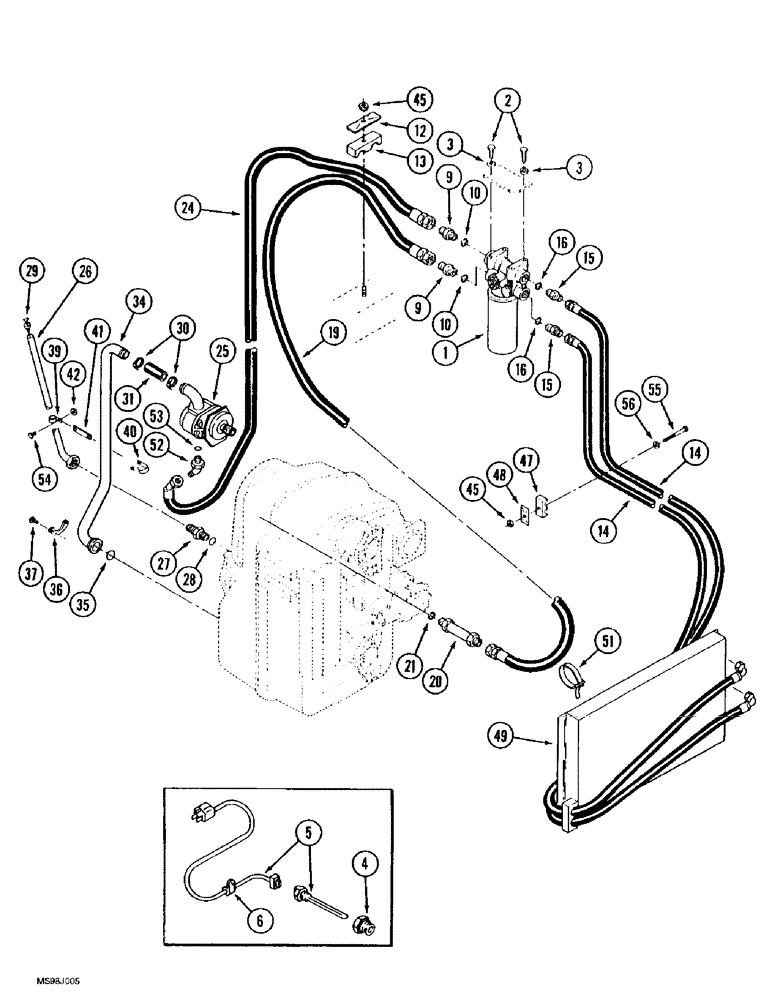

Запчасти Case IH 9380 (6-118) - TRANSMISSION LUBRICATION, TRANSMISSION TO COOLER, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN

1

50-3494T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - oil, transmission, parts list Figure 8-034

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

4

50-3675T1

FITTING

ADAPTER - drain plug, special

1шт.

Part of heater maintainer kit P/N 35-2016T91.

1шт.

5

A164503

HEATER ASSY.

HEATER - transmission, with cordset

1шт.

Part of heater maintainer kit P/N 35-2016T91.

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

Part of heater maintainer kit P/N 35-2016T91.

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Not shown

7шт.

Part of heater maintainer kit P/N 35-2016T91.

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 10

2шт.

12

50-2668T1

PLATE

- clamp support

1шт.

13

50-2965T1

HOSE CLAMP

CLAMP - double

1шт.

14

31-1486

HOSE

-, Serial Range: cooler-filter

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 16

2шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

2шт.

19

31-2911

HOSE

- 1321 mm (52 inch) long, Serial Range: transmission-filter

1шт.

20

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

24

31-3015

HOSE,25.4mm ID x 1905mm L

-, Serial Range: filter-pump

1шт.

25

33-1874T91

PUMP, HYDRAULIC

PUMP - lubrication, component parts not serviced separately

1шт.

Part of lubrication pump O-ring kit P/N 90-8261T91.

1шт.

26

90-7490T1

TUBE,25, 2.37 mm L

- dipstick

1шт.

27

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

29

90-7826T1

DIPSTICK

- oil check

1шт.

30

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

31

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below

1шт.

34

90-7825T1

TUBE,.5" OD

- pump to transmission

1шт.

35

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

36

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

37

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

39

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

41

90-6588T1

SUPPORT

BRACKET - support

1шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

90-8261T91

SEAL KIT

KIT - O-ring, lubrication pump, Includes: Ref. 25 and gasket not used with this pump

1шт.

35-2016T91

UNIT HEATER

KIT - heater maintainer, Includes: Ref. 4 - 7

1шт.

47

50-2534T1

CLAMP

- split, one-half

1шт.

48

50-2533T1

PLATE

- clamp support

1шт.

49

90-6708T1

OIL COOLER

COOLER - oil, hydraulic, used on 9370 and 9380, See Figure 8-040 for cooler mounting

1шт.

49

90-8163T1

COOLER, OIL

COOLER - oil, hydraulic, used on 9390, See Figure 8-040 for cooler mounting

1шт.

51

50-2037T1

STRAP

- tie

1шт.

52

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 53

1шт.

54

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

55

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

1шт.

56

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

53

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
