(1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 POWER SHIFT TRACTOR ONLY

Запчасти Case IH 9380 (1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 POWER SHIFT TRACTOR ONLY (00) - PICTORIAL INDEX

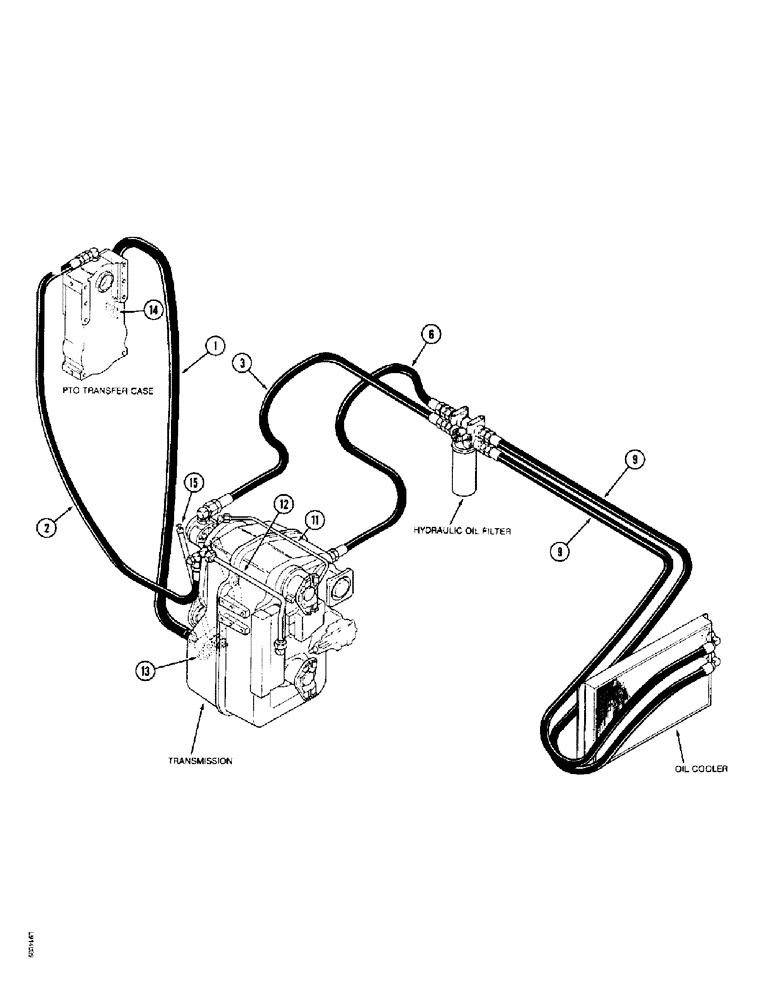

Схема запчастей Case IH 9380 - (1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 POWER SHIFT TRACTOR ONLY (00) - PICTORIAL INDEX
6
3
2
9
1
13
12
11
9
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PTO Transfer Case Return Hose, 6-123

1шт.

2

PTO Transfer Case Lubrication Hose, 6-123

1шт.

3

Transmission Lubrication Supply Hose, 6-115

1шт.

6

Transmission Lubrication Supply Hose, 6-115

1шт.

9

Oil Cooler Supply Hose, 6-115

1шт.

11

Transmission Lubrication Tube, 6-123

1шт.

12

Transmission Lubrication Tube, 6-123

1шт.

13

Transmission Lubrication Supply Tube, 6-115

1шт.

14

PTO Transfer Case Adapter Tube, 6-123

1шт.

15

Transmission Fill Tube, 6-115

1шт.
