(1-16) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 SYNCHROSHIFT TRACTOR ONLY

Запчасти Case IH 9380 (1-16) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 SYNCHROSHIFT TRACTOR ONLY (00) - PICTORIAL INDEX

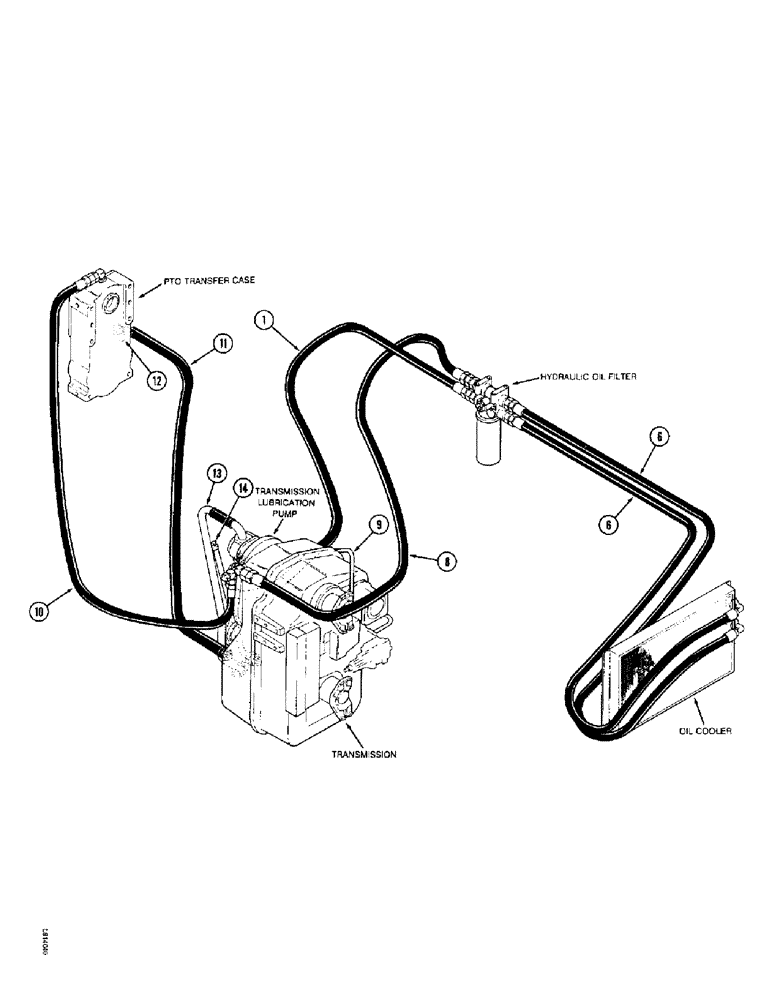

Схема запчастей Case IH 9380 - (1-16) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, 9370 AND 9380 SYNCHROSHIFT TRACTOR ONLY (00) - PICTORIAL INDEX
9
10
12
8
6
11
1
13
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Transmission Lubrication Supply Hose, 6-119

1шт.

6

Oil Cooler to Filter Hose, 6-119

1шт.

8

Transmission Lubrication Supply Hose, 6-119

1шт.

9

Transmission Lubrication Tube, 6-125

1шт.

10

PTO Transfer Case Lubrication Hose, 6-125

1шт.

11

PTO Transfer Case Return Hose, 6-125

1шт.

12

PTO Transfer Case Adapter Tube, 6-125

1шт.

13

Transmission Lubrication Pump Tube, 6-119

1шт.

14

Transmission Fill Tube, 6-119

1шт.
