(1-18) - PICTORIAL INDEX, REMOTE HYDRAULICS, 9370 AND 9380 ONLY

Запчасти Case IH 9380 (1-18) - PICTORIAL INDEX, REMOTE HYDRAULICS, 9370 AND 9380 ONLY (00) - PICTORIAL INDEX

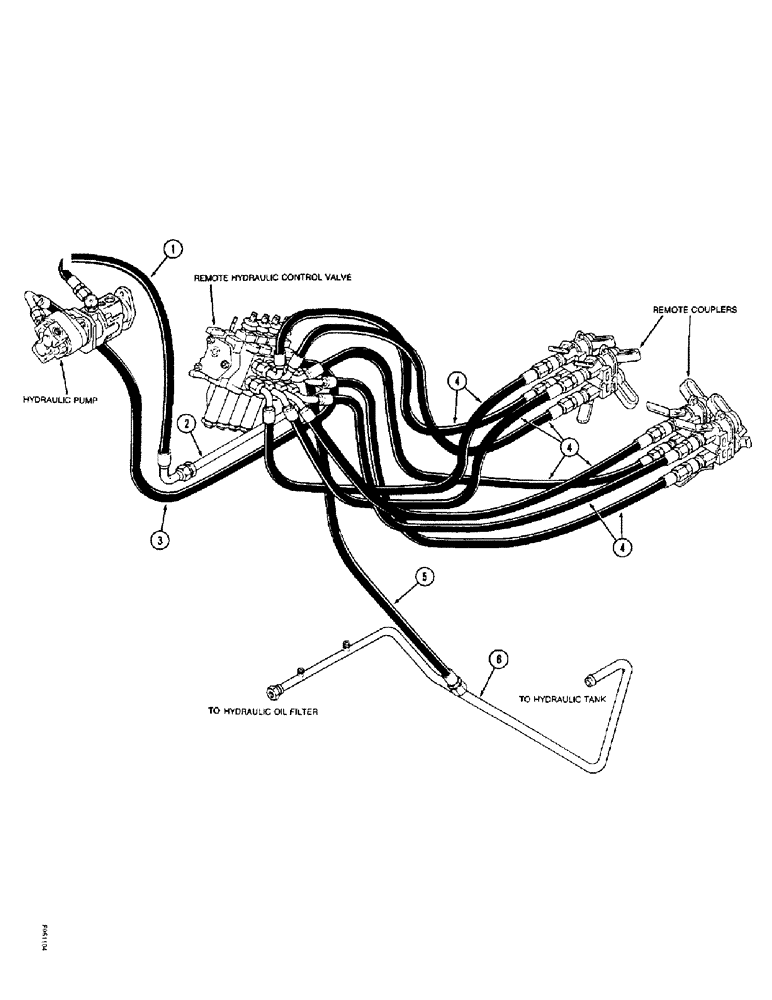

Схема запчастей Case IH 9380 - (1-18) - PICTORIAL INDEX, REMOTE HYDRAULICS, 9370 AND 9380 ONLY (00) - PICTORIAL INDEX
6
3
4
4
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Remote Hydraulic Control Valve Supply Hose, 8-3

1шт.

2

Remote Hydraulic Control Valve Supply Tube, 8-3

1шт.

3

Hydraulic Pump Pressure Sensing Hose, 8-3

1шт.

4

Remote Coupler Pressure Hose, 8-17

1шт.

5

Remote Hydraulic Control Valve Drain Hose, 8-3

1шт.

6

Hydraulic Tank Return Tube, 8-3

1шт.
