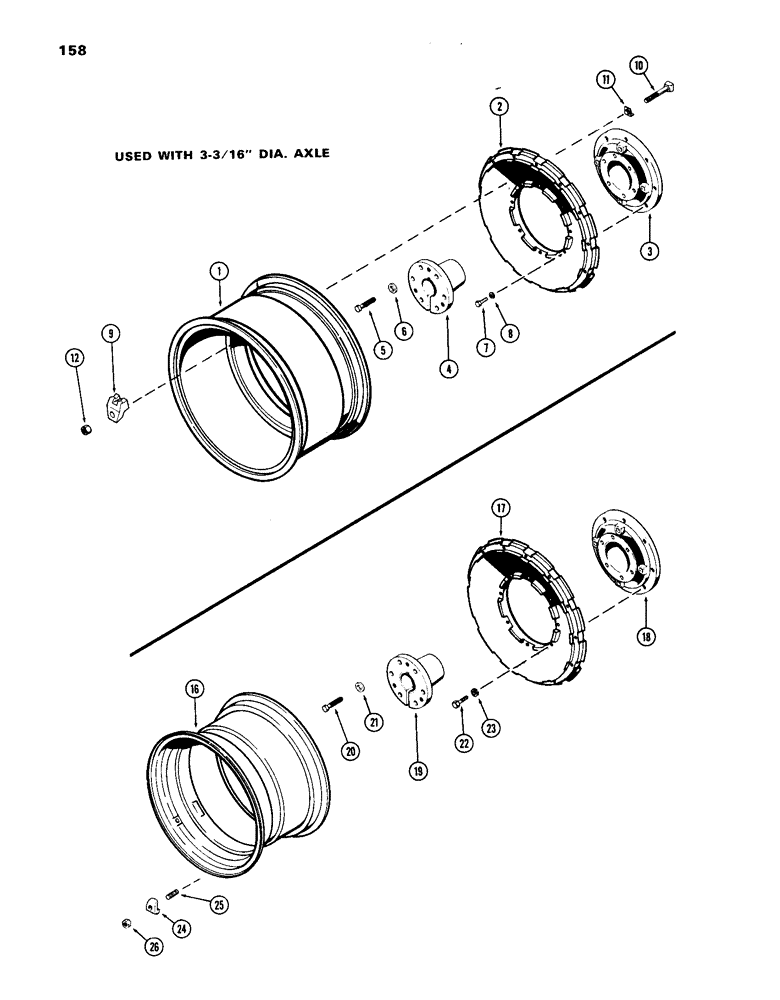

Запчасти Case IH 1070 (158) - REAR WHEELS W/34" RIMS, MANUAL ADJUSTABLE, USED WITH 3-3/16" DIA. AXEL (06) - POWER TRAIN

1

A33168

RIM

rear wheel, takes 16.9 x 34 tire

2шт.

1

A57045

RIM

rear wheel, takes 18.4 x 34 tire

2шт.

2

A33172

WHEEL

rear, universal hub

2шт.

3

A59789

HUB

universal

2шт.

4

A57993

BUSHING

rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex. hd., bushing to hub

12шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4"

12шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A57654

CLAMP

double ramp type, Serial Range: rim-wheel

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

sq. hd., 3/4 x 3-1/2" N.C.

24шт.

11

A34799

LOCK WASHER

lock, rim to wheel clamp bolt

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C., heavy

24шт.

16

A33460

RIM

rear wheel, takes 23.1 x 34 tire

2шт.

17

A57686

WHEEL

rear, universal hub

2шт.

18

A59789

HUB

universal

2шт.

19

A57993

BUSHING

rear wheel hub

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex., bushing to hub

12шт.

21

D31328

WASHER

49/64 x 1-5/8 x 1/4"

12шт.

22

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

24

F62001

CLAMP

, Serial Range: rim-wheel

16шт.

25

A60047

STUD

rim to wheel clamp

16шт.

26

A27183

NUT

rim to wheel clamp stud

16шт.
