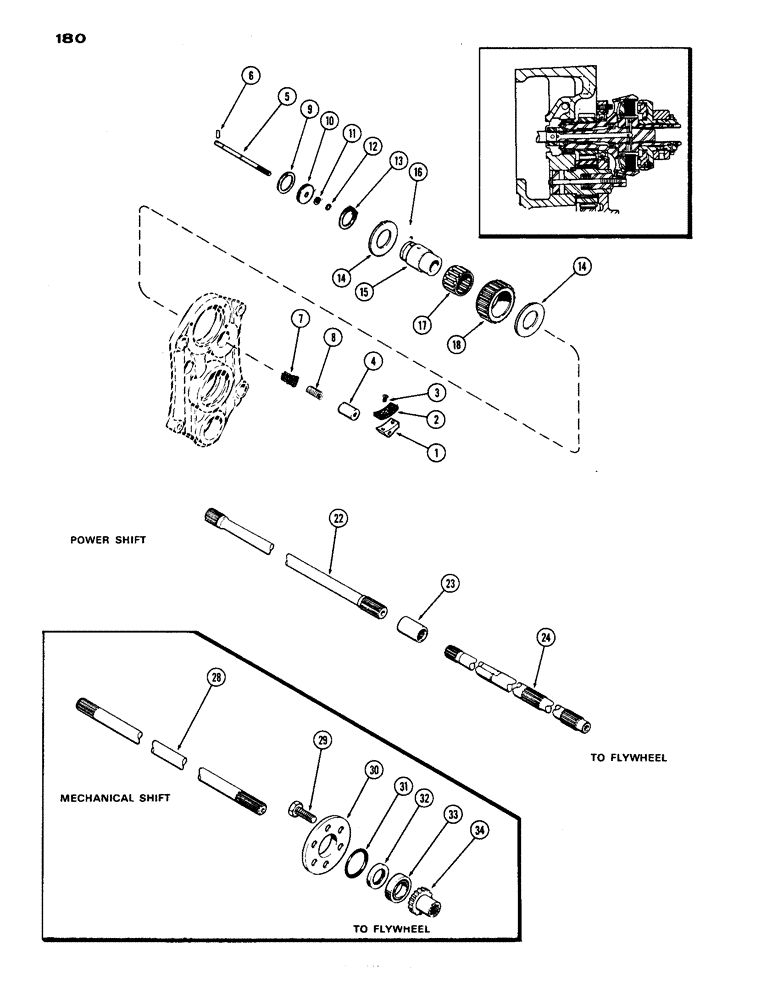

Запчасти Case IH 1070 (180) - P.T.O. 1ST IDLER AND P.T.O. BRAKE (06) - POWER TRAIN

A65713

BRAKE

SHOE ASSY. P.T.O., not illustrated, Order A65713, Includes Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE P.T.O. brake, Order A58990

1шт.

2

A25599

FACING

KIT facing, P.T.O. brake, Includes Ref. 3

1шт.

3

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW self tapping, no. 10 N.C. x 3/8"

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON P.T.O. brake apply, Order A58990

1шт.

5

NSS

NOT SOLD SEPARAT

ROD connecting, P.T.O. brake, Order A58990

1шт.

6

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

7

A32451

SPRING

actuating, P.T.O. brake, 1-3/16" free length

1шт.

8

D38446

SPRING

actuating, P.T.O. brake, 1-1/4" free length

1шт.

9

A58989

RING

seal, P.T.O. brake release piston

1шт.

10

A58994

PISTON

P.T.O. brake release

1шт.

11

G46146

SNAP RING,#37, Ext

Ring, Snap, , external, P.T.O. brake connecting rod #37, Ext

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

P.T.O. brake rod, 1/4 x 3/8 x 1/16"

1шт.

13

A58989

RING

seal, on P.T.O. 1st idler shaft

1шт.

14

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

P.T.O. 1st idler shaft

2шт.

15

A58988

SHAFT

P.T.O. 1st idler

1шт.

16

211-7

BALL,1/4" Dia

chrome steel 1/4" Dia

1шт.

17

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING roller, 1st idler gear

1шт.

18

A34136

GEAR

1st idler, 25T

1шт.

22

A58414

SHAFT

drive, rear, P.T.O., power shift, 30" long

1шт.

23

A37662

COUPLING, BREAK AWAY

COUPLING drive shaft, front and rear, P.T.O., power shift

1шт.

24

A62864

SHAFT

drive, front, P.T.O., 21-13/32" long, Replaces A59932, power shift

1шт.

28

A34435

SHAFT

drive, P.T.O. and hyd. pump, 53-13/32" long, mechanical shift

1шт.

29

114-622

X

BOLT, 5/8 x 2" N.F. hex, mechanical shift

6шт.

30

A7145

RETAINER

oil seal, clutch shaft, front, mechanical shift

1шт.

31

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2-1/2 x 2-3/4 x 1/8", mechanical shift

1шт.

32

A57479

OIL SEAL

oil, clutch shaft, front, 1-1/2 x 2-1/8 x 7/16", mechanical shift

1шт.

33

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING pilot, clutch shaft, front, mechanical shift

1шт.

34

A34522

SLEEVE

drive shaft, front, P.T.O. and hyd. pump, mechanical shift

1шт.
