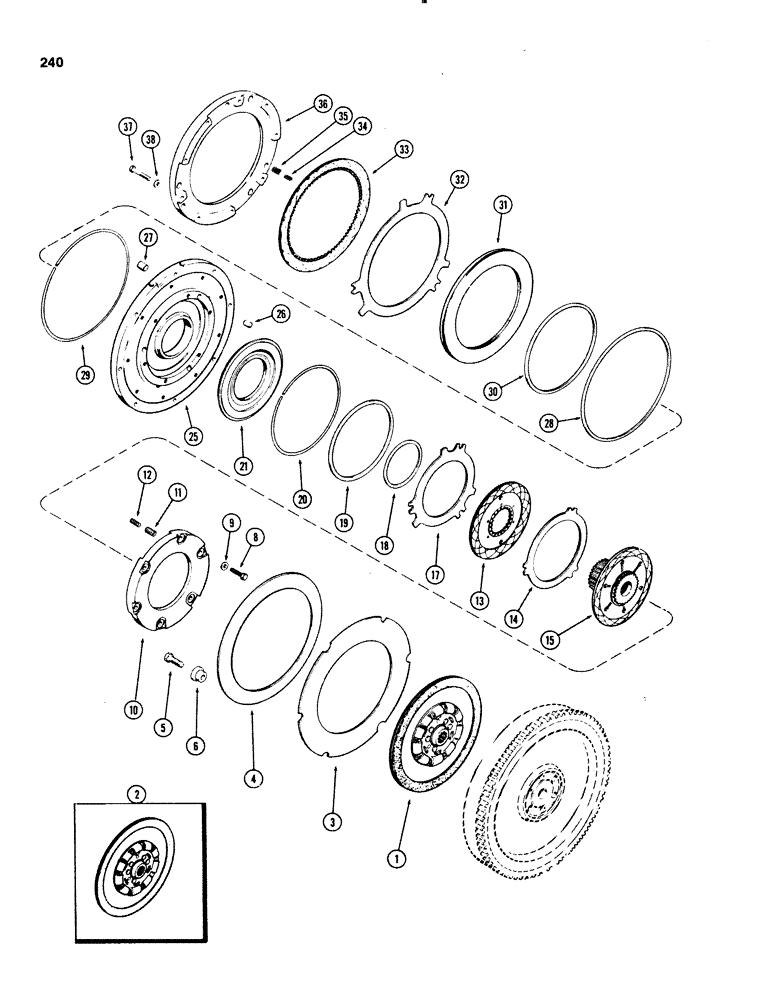

Запчасти Case IH 1070 (0240) - CLUTCH, C-1 AND C-4, POWER SHIFT, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10063614 (06) - POWER TRAIN

1

A65422

SWITCH

PLATE ASSY. - 12" driven member, torque limiter w/1-7/8" I.D. spline (1st used trac. ser. no. 8725656) (See Note)

1шт.

2

A58388

PLATE

ASSY. - 12" driven member, torque limiter w/1-1/8" I.D. spline (used prior to trac. ser. no. 8725656)

1шт.

3

A138704

PLATE

- pressure, torque limiter, (Replaces A58036)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced

1шт.

4

A61000

SPRING

- Belleville, torque limiter

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced

1шт.

5

113-401

BOLT

- 1/2 x 1-3/4" N.C. hex

6шт.

6

A140214

SPACER

RETAINER - clutch spring, torque limiter (Replaces A59133)

6шт.

8

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" N.C. hex

6шт.

9

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A62605)

6шт.

10

A150128

PLATE

- reaction, (C-1 clutch) (Replaces A59025)

1шт.

11

A62606

SPRING

- return, 9/16" dia., 1-3/32" free length (C-1 clutch)

3шт.

12

A62607

SPRING

- return, 23/64" dia., 1-3/32" free length (C-1 clutch)

3шт.

13

A142536

PLATE

- clutch, sintered (Replaces A62613, A75971 & A77131)

1шт.

14

A65525

PLATE

- (C-1 clutch) w/3 ears (Replaces A62610)

1шт.

15

A150136

GEAR

ASSY. - sun (Incl. plate & snap rings) (Replaces A62858, A65419 & A144154)

1шт.

17

A65524

PLATE

- (C-1 clutch) w/6 ears (Replaces A58392)

1шт.

18

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (C-1 clutch) (See A42886 kit, Fig. 256)

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (C-1 clutch) (See A42886 kit, Fig. 256)

1шт.

20

A62642

ELECTRICAL WIRE

WIRE - piston seal (See A42886 kit, Fig. 256)

1шт.

21

A66392

PISTON

- (C-1 clutch) (Replaces A58380) (Order 1-A146670, 1-A150754, 1-A150753, 1-A146682 & 1-A146683) (See Fig. 238)

1шт.

25

A62608

CARRIER

ASSY. - piston (C-1 & C-4 clutch), Includes: Ref. 26 and 27

1шт.

26

A62609

PIN,12.45mm OD x 27.43mm L

- roll, reaction plate (31/64 x 1-5/64") (C-1 clutch)

3шт.

27

A58059

PIN

- roll, reaction plate (31/64 x 3/4") (C-4 clutch)

3шт.

28

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (C-4 clutch) (See A42886 kit, Fig. 256)

1шт.

29

A62643

ELECTRICAL WIRE

WIRE - piston seal (See A42886 kit, Fig. 256)

1шт.

30

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal (C-4 clutch) (See A42886 kit, Fig. 256)

1шт.

31

A58395

PISTON

- (C-4 clutch) (Order 1-A146671, 1-A150752, 1-A150751, 1-A146681 & 1-A146683) (See Figure 238)

1шт.

32

A58056

PLATE

- steel (C-4 clutch)

1шт.

33

A67128

PLATE

- sintered (C-4 clutch) (Replaces A62563)

1шт.

34

A60596

SPRING

- return, 23/64" dia., 3/4" free length (C-4 clutch)

3шт.

35

A58391

SPRING

- return, 9/16" dia., 3/4" free length (C-4 clutch)

3шт.

36

A58394

PLATE

- reaction (C-4 clutch)

1шт.

37

113-244

X

BOLT - 3/8 x 2-1/2" N.C. hex

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

9шт.
