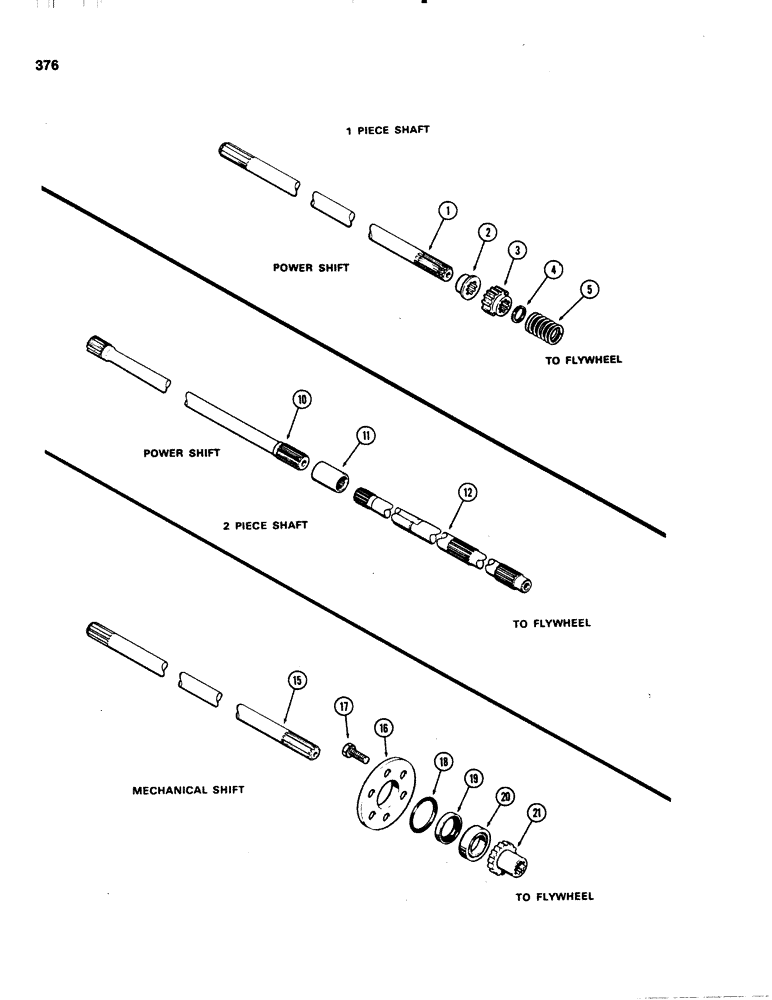

Запчасти Case IH 1070 (0376) - PTO SHAFTS, POWER SHIFT, 1 PIECE SHAFT, USED WITH SPLINED FLYWHEEL ,1ST USED TRACTOR SER. NO 8725656 (06) - POWER TRAIN

1

A65412

SHAFT

- drive (52-12" long)

1шт.

2

A65415

BUSHING,17T

- drive shaft

1шт.

3

A66609

SLEEVE

- drive (31 external teeth) (1st used trans ser no. 2428601)

1шт.

3

A65418

SLEEVE

- drive shaft (29 external teeth) (Used prior to trans ser no. 2428601)

1шт.

4

A75171

SNAP RING,#112, 1.060", Ext

RING - snap, sleeve & bushing retaining (1" dia)

1шт.

5

A65416

SPRING

- drive shaft, 2-1/4" free length

1шт.

10

A58414

SHAFT

- drive, rear (30" long), 2 piece shaft used without splined flywheel used prior to trac. ser. no. 8725656

1шт.

11

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, front & rear, 2 piece shaft used without splined flywheel used prior to trac. ser. no. 8725656

1шт.

12

A62864

SHAFT

- drive, front (21-13/32" long), 2 piece shaft used without splined flywheel used prior to trac. ser. no. 8725656

1шт.

15

A34435

SHAFT

- drive (53-13/32" long), mechanical shift

1шт.

16

A7145

RETAINER

- oil seal, shaft, mechanical shift

1шт.

17

114-622

X

BOLT - 5/8 x 2" NF hex, mechanical shift

6шт.

18

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- 2-1/2 x 2-3/4 x 1/8", mechanical shift

1шт.

19

A57479

OIL SEAL

- oil, shaft (1-1/2 x 2-1/8 x 7/16"), mechanical shift

1шт.

20

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, shaft, mechanical shift

1шт.

21

A34522

SLEEVE

- shaft, mechanical shift

1шт.
