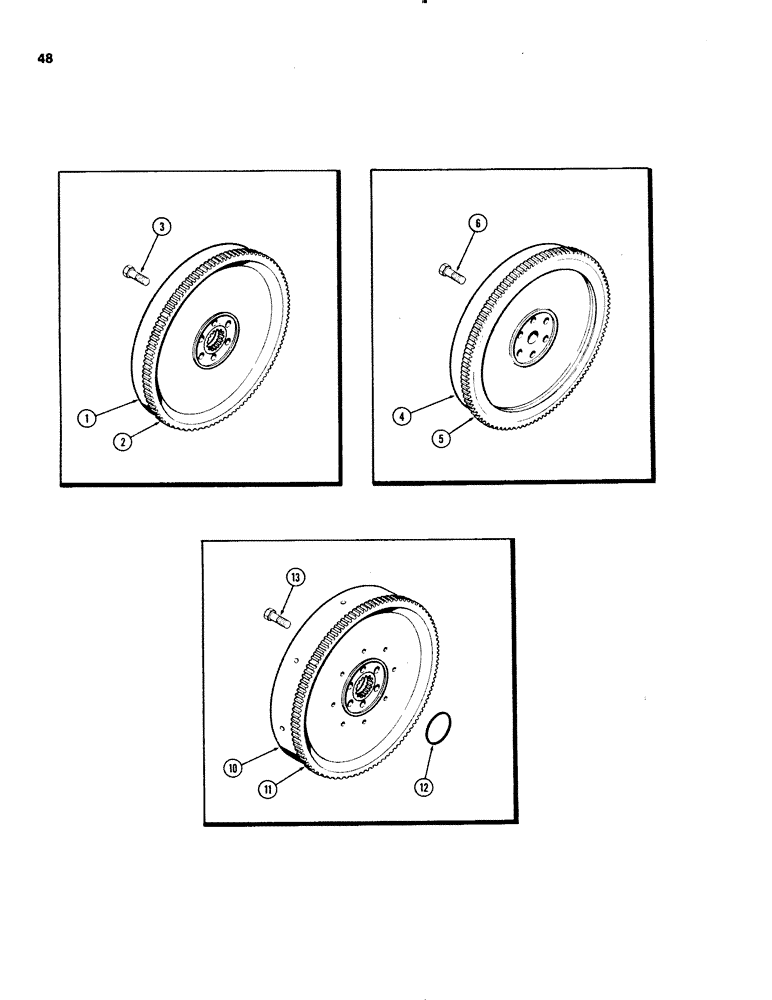

Запчасти Case IH 1070 (0048) - FLYWHEEL, 451B DIESEL ENGINE (02) - ENGINE

1

A66611

FLYWHEEL

ASSY - (w/31 spline teeth) (power shift) (Includes ref 2) (See Fig. 376)

1шт.

1

A65378

FLYWHEEL ASSY - (w/29 spline teeth) (power shift) (See Fig. 376), Includes: Ref. 2

1шт.

2

A58778

GEAR

- ring, 139 teeth

1шт.

3

114-621

BOLT

- 5/8 x 1-3/4" NC hex

6шт.

4

A59034

FLYWHEEL ASSY - w/o spline (power shift) (See Fig. 376), Includes: Ref. 5

1шт.

5

A58778

GEAR

- ring, 139 teeth

1шт.

6

114-621

BOLT

- 5/8 x 1-3/4" NC hex

6шт.

10

A58934

FLYWHEEL

ASSY - (mechanical shift) (See Fig. 376), Includes: Ref. 11

1шт.

11

A58778

GEAR

- ring, 139 teeth

1шт.

12

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

13

114-622

X

BOLT - 5/8 x 2" NF hex

6шт.
