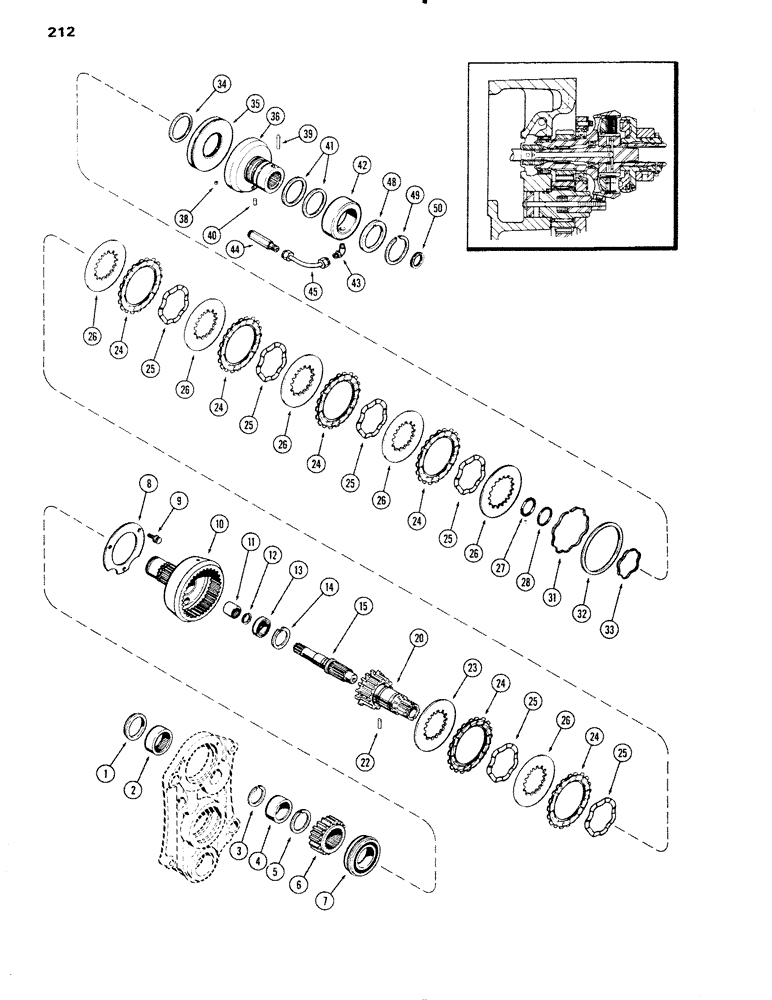

Запчасти Case IH 1090 (212) - P.T.O. CLUTCH AND DRIVE (08) - HYDRAULICS

1

A33007

RING

- clutch drum oil restrictor

1шт.

2

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, clutch drum

1шт.

3

A33323

RING

- snap, drum bearing race

1шт.

4

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - inner, drum needle bearing

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, pinion retaining

1шт.

6

A32435

GEAR

PINION - P.T.O. driver

1шт.

7

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum outer

1шт.

8

A59019

RING

- clamp, outer bearing retaining

1шт.

9

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" N.C. Ferry cap

3шт.

10

A62890

CLUTCH

DRUM ASSY. - P.T.O. clutch (Replaces A61615), Includes: Ref. 11

1шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, clutch drum inner

1шт.

12

A32438

SNAP RING

RING - snap, bearing retaining, outer

1шт.

13

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum inner

1шт.

14

A32439

RING

- snap, bearing retaining, inner

1шт.

15

A59020

SHAFT

- drive, hydraulic pump

1шт.

20

A62199

HUB

- P.T.O. clutch

1шт.

22

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.

23

A7101

PLATE

- clutch backing

1шт.

24

A59231

PLATE

- drive, sintered

6шт.

25

A59013

SPRING

- clutch separator

6шт.

26

A65425

PLATE

- driven, steel (Replaces A57170)

6шт.

27

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - 1-11/16 x 1-1/2 x 3/32"

1шт.

28

A62193

O-RING,1.424" ID x 1.63" OD

"O" RING - 1-7/16 x 1-5/8 x 3/32"

1шт.

31

A59012

SPRING

- expander, clutch piston

1шт.

32

A59011

RING

- seal, clutch piston

1шт.

33

A59010

SPRING

- expander, clutch piston

1шт.

34

A59009

RING

- sealing, clutch piston

1шт.

35

A59008

PISTON

- clutch

1шт.

36

A62200

CARRIER

- clutch piston

1шт.

38

211-6

BALL,7/32" Dia

1шт.

39

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

Pin, Grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

40

138-2044

PIN,1/16" x 1/2", Coiled

- Spirol, 1/16 x 1/2"

1шт.

41

A59005

SEAL

RING - seal, piston carrier

2шт.

42

A59006

COLLAR

- clutch

1шт.

43

222-4047

ELBOW

- 1/4" P.T., 3/8" tube

1шт.

44

A59015

CONNECTOR, ELEC

CONNECTOR ASSY. - clutch feed tube (in P.T.O. housing)

1шт.

45

A62355

TUBE

- clutch feed

1шт.

48

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

- retaining, clutch collar

1шт.

49

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, piston carrier

1шт.

50

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

RING - snap, Spirolux, piston carrier

1шт.
