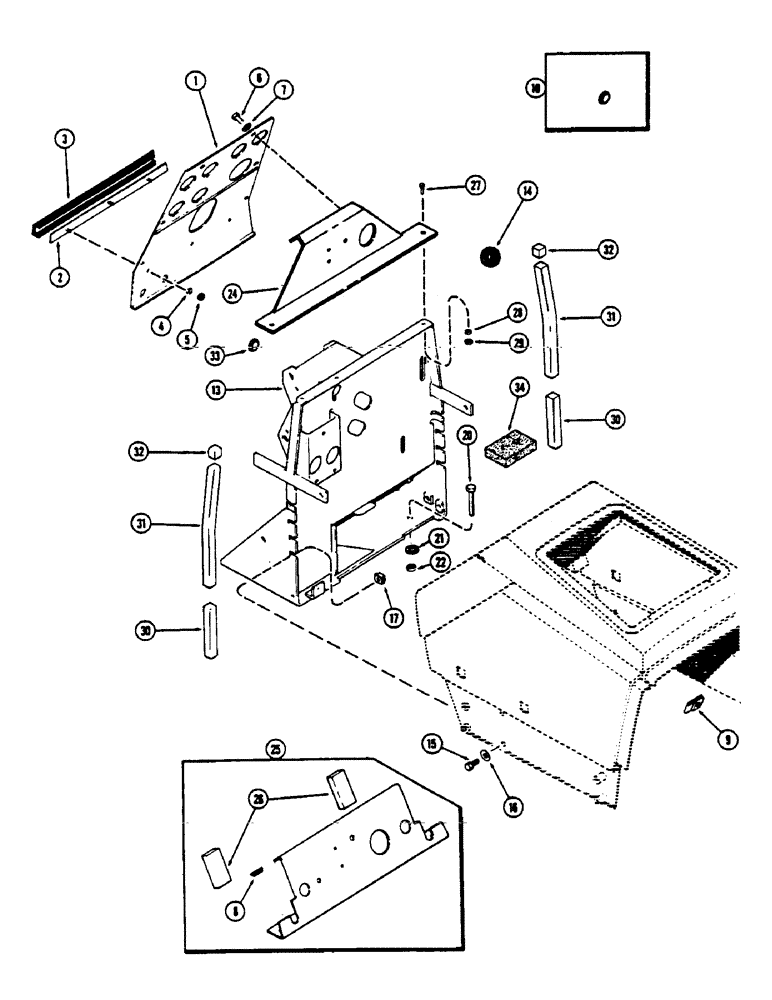

Запчасти Case IH 1175 (202) - INSTRUMENT PANEL (09) - CHASSIS

1

A66927

PANEL

ASSY. - instrument (Decals not incl.), see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A, (w/turn signals) (1st used trac. ser. no. 8753831)

1шт.

1

A65991

PANEL ASSY.

- instrument (Replaces A64900), see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A, (w/o turn signals) (Used prior to trac. ser. no. 8753831)

1шт.

2

A60957

PLATE ASSY. - moulding

1шт.

3

A63895

MOLDING

MOULDING - instrument panel bumper

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

25-104

NUT,1/4"-20, G5

3шт.

6

A60266

SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK

- #10 x 5/8" N.C. hex., brass

6шт.

7

193-93

LOCK WASHER,#10

WASHER - Shakeproof, int. #10

6шт.

8

131-621

NUT,Ret, J, #10-24

- #10 N.C. Tinnerman

4шт.

9

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

RETAINER - #10 N.C. "J" type

2шт.

10

353-411

PLUG,Dome, 1.000" hole, Nylon

Ether start switch hole Dome, 1.000" hole, Nylon

1шт.

13

A66298

FIREWALL ASSY. - (Replaces A64542)

1шт.

14

A59719

GROMMET

- firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

17

131-608

NUT

- 3/8" N.C. hex. Tinnerman

4шт.

20

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

21

A66681

WASHER

- 33/64 x 2 x 1/4"

2шт.

22

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

2шт.

22

131-1116

LOCK NUT,1/2"-13, GB

NUT - 1/2" N.C. hex.

2шт.

24

A66412

BAFFLE - steering wheel (Replaces A64546)

1шт.

25

A64546

BAFFLE

ASSY. - steering wheel (Order 1-A66412, 1-A66417 and 1-A66421), Includes: Ref. 26

1шт.

26

A59805

FILLER

BAFFLE - air, see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A

2шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

4шт.

30

A60777

FOAM

BAFFLE - steering column support, lower, see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A

2шт.

31

A60776

FOAM

BAFFLE - steering column support, center, see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A

2шт.

32

A60775

BAFFLE - steering column support, upper, see Figure 222 for decal kit, to be attached with adhesive 345-22, for rear hood and firewall seals see Figure 203A

2шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - 1-1/2" button

2шт.

34

A64965

SEAL

- sealing, firewall

4шт.
