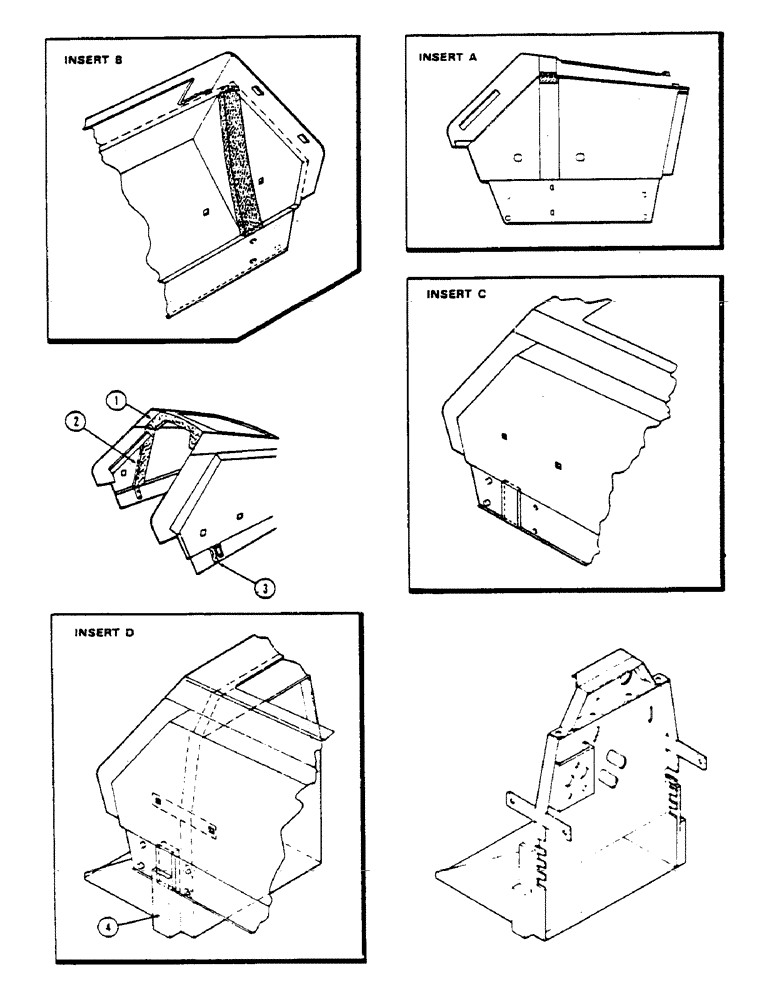

Запчасти Case IH 1175 (203A) - SEALS, REAR HOOD AND FIREWALL (09) - CHASSIS

1

A66417

BAFFLE

- firewall, top (See Inset A), to be attached with adhesive 345-22

1шт.

2

A66419

BAFFLE

FOAM - hood, rear (See Inset B), to be attached with adhesive 345-22

2шт.

3

A66420

FOAM

- rear hood (See Inset C), to be attached with adhesive 345-22

2шт.

4

A66416

BAFFLE

- firewall, lower (See Inset D), to be attached with adhesive 345-22

2шт.
