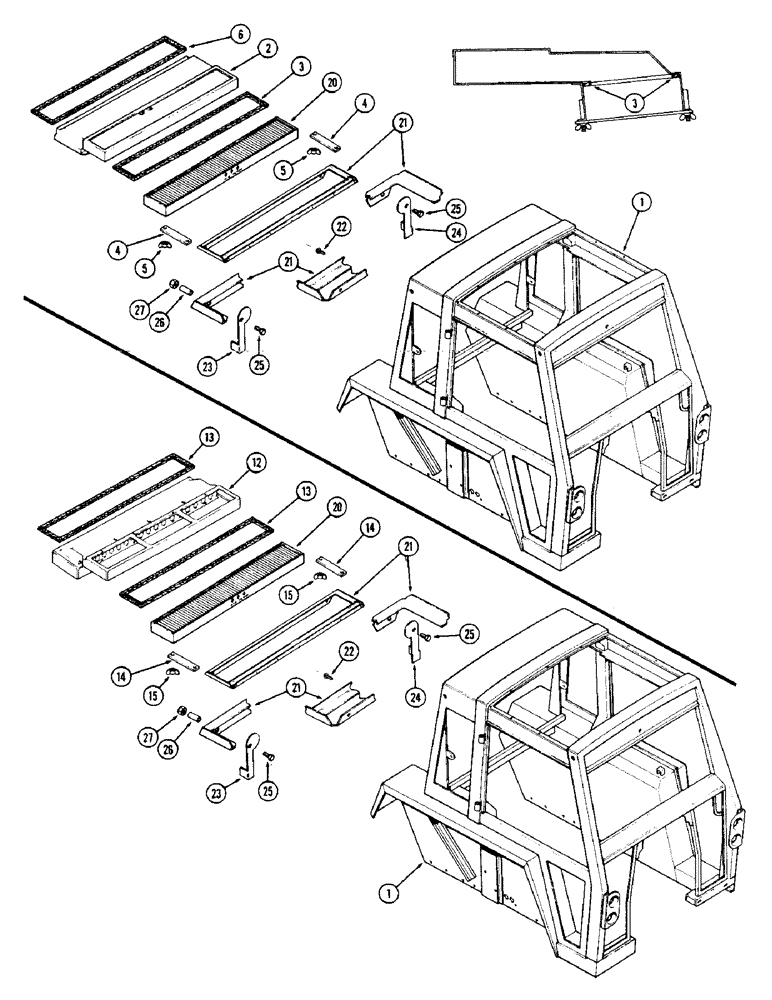

Запчасти Case IH 1175 (242) - CAB, OUTSIDE EXTENSION FILTER KIT (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

NSS

NOT SOLD SEPARAT

ATTACHEMENT - air filter (Order components) (1st used cab ser. no. 7800701) (Was A65701 and A66393), Includes: Ref. 2 - 6

1шт.

A66394

HOUSING ASSY. - filter (metal), Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - filter

1шт.

3

A44660

GASKET -, Serial Range: housing-filter

1шт.

4

NLS

NO LONGER SERVICED

- filter retainer

2шт.

5

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

6

A44500

GASKET

-, Serial Range: housing-cab

1шт.

F65701

ATTACHMENT - air filter (Mach. Item) (Order 1-A66394 housing and 1-A44500 gasket) to cab., Includes: Ref. 12 - 15, Serial Range: -7800701

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - extension, intake filter

1шт.

13

A44500

GASKET

- housing and filter

2шт.

14

A44436

BAR

- retainer, air intake filter

2шт.

15

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

20

NLS

NO LONGER SERVICED

- air intake

1шт.

21

F89645

PLATE

ASSY. - filter housing

1шт.

22

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips self-tapping

7шт.

23

F63267

CAM - latch, R.H.

1шт.

24

F63266

LATCH

CAM - latch, L.H.

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

T32262

SPACER - cam bolt

2шт.

27

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex

2шт.
