(320) - IDLER PULLEY KIT, 1/2 INCH PULLEY, FIRST USED TRACTOR SERIAL NUMBER 8707322

Запчасти Case IH 1175 (320) - IDLER PULLEY KIT, 1/2 INCH PULLEY, FIRST USED TRACTOR SERIAL NUMBER 8707322 (09) - CHASSIS

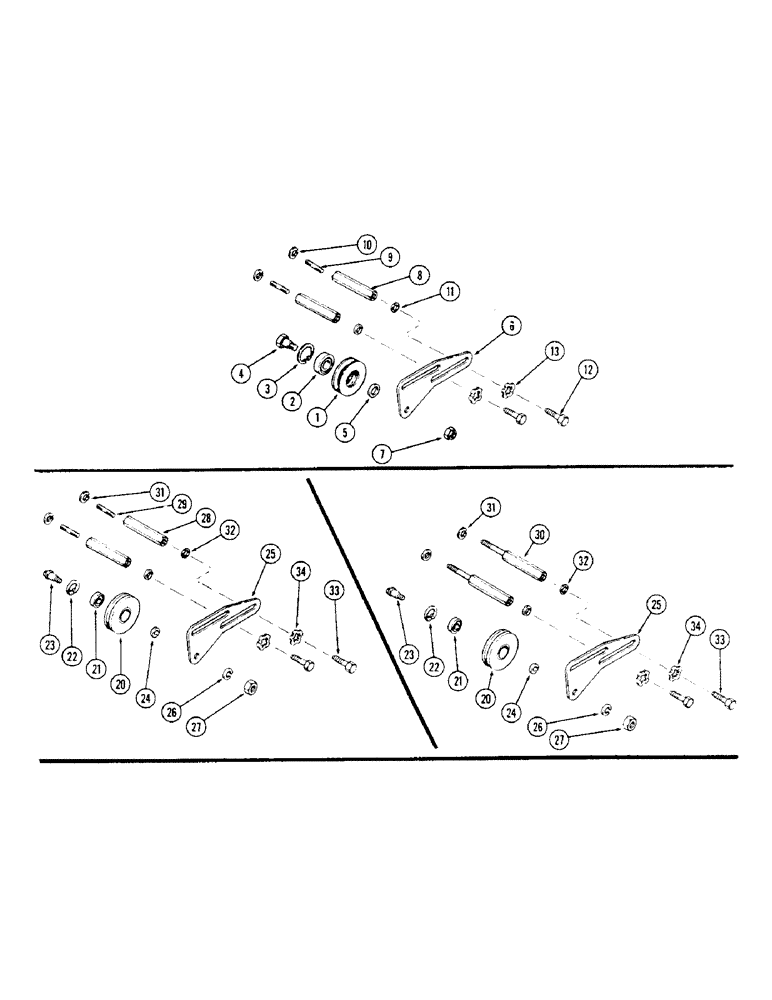

Схема запчастей Case IH 1175 - (320) - IDLER PULLEY KIT, 1/2 INCH PULLEY, FIRST USED TRACTOR SERIAL NUMBER 8707322 (09) - CHASSIS
32
29
24
23
1
7
13
21
8
3
21
20
4
25
6
24
25
33
34
34
31
27
23
10
27
28
26
11
5
32
31
26
2
22
9
33
22
20
30
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A66070

KIT

IDLER KIT - idler pulley w/heavy duty bearing, Includes: Ref. 1 - 13

1шт.

1

A65780

PULLEY

- idler, compressor drive belt

1шт.

2

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - pulley, heavy duty

1шт.

3

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg 1.562", Int, #156

1шт.

4

A65782

PIN

- idler pulley, 9/16" N.F.

1шт.

5

A65783

SPACER

- idler pulley

1шт.

6

A65784

PLATE

- idler adjusting

1шт.

7

131-1145

JAM NUT,5/8" - 18

NUT - 9/16" N.F. hex. jam

1шт.

8

A65668

MOUNTING PARTS

POST - idler mounting

2шт.

9

A65667

STUD

- post

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

8шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

20

A62964

PROTECTOR

PULLEY - idler, compressor drive belt, Serial Range: -8707322

1шт.

21

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley (Order A42991), Serial Range: -8707322

1шт.

22

A62966

SNAP RING,1.02", Int, #102

Ring, Snap, , brg, idler pulley - 1/2" 1.02", Int, #102, Serial Range: -8707322

1шт.

23

A62967

PIN

- idler pulley, 5/16" N.C., Serial Range: -8707322

1шт.

24

A62968

SPACER

- pulley, idler, Serial Range: -8707322

1шт.

25

A62969

LARGE PLATE

PLATE - idler adjusting, pulley 1/2", Serial Range: -8707322

1шт.

26

192-110

LOCK WASHER,5/16"

WASHER - lock, , idler pulley 1/2" 5/16", Serial Range: -8707322

1шт.

27

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex., idler pulley 1/2", Serial Range: -8707322

1шт.

29

A65667

STUD

- mounting post, idler pulley 1/2", Serial Range: -8707322

2шт.

30

A62970

POST

- idler mounting (Order A65667 and A65668), pulley 1/2", Serial Range: -8707322

2шт.

31

92-6

LOCK WASHER,3/8"

idler pulley 1/2" 3/8", Serial Range: -8707322

2шт.

32

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", idler pulley 1/2", Serial Range: -8707322

8шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Idler pulley 1/2" Hex, 3/8"-16 x 1 1/8", G5, Full Thd, Serial Range: -8707322

2шт.

34

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext., idler pulley 1/2", Serial Range: -8707322

2шт.
