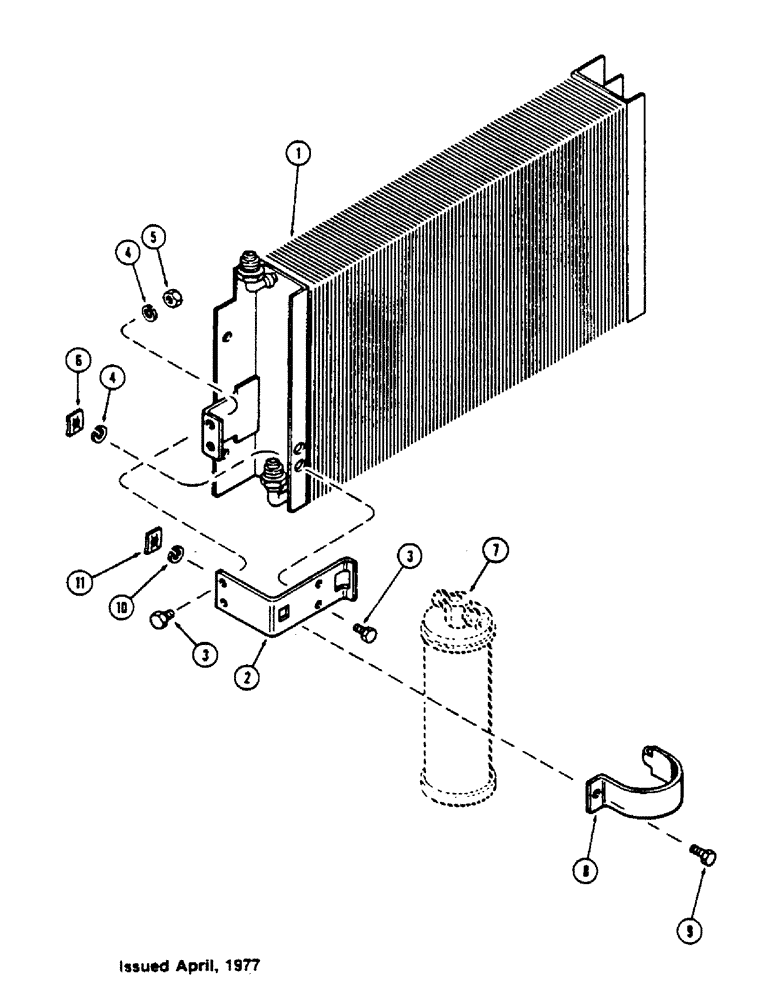

Запчасти Case IH 1175 (321A) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, FIRST USED TRACTOR SERIAL NUMBER 8810656 (09) - CHASSIS

1

A143267

COIL

- condenser

1шт.

2

A141412

BRACKET

- receiver dryer

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

25-104

NUT,1/4"-20, G5

2шт.

6

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- 1/4" N.C. Tinnerman

2шт.

7

A61688

TANK

RECEIVER - dryer

1шт.

8

A61193

CLAMP

- receiver dryer

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

131-137

SPRING NUT,Ret, 5/16"-18

Tinnerman Ret, 5/16"-18

1шт.
