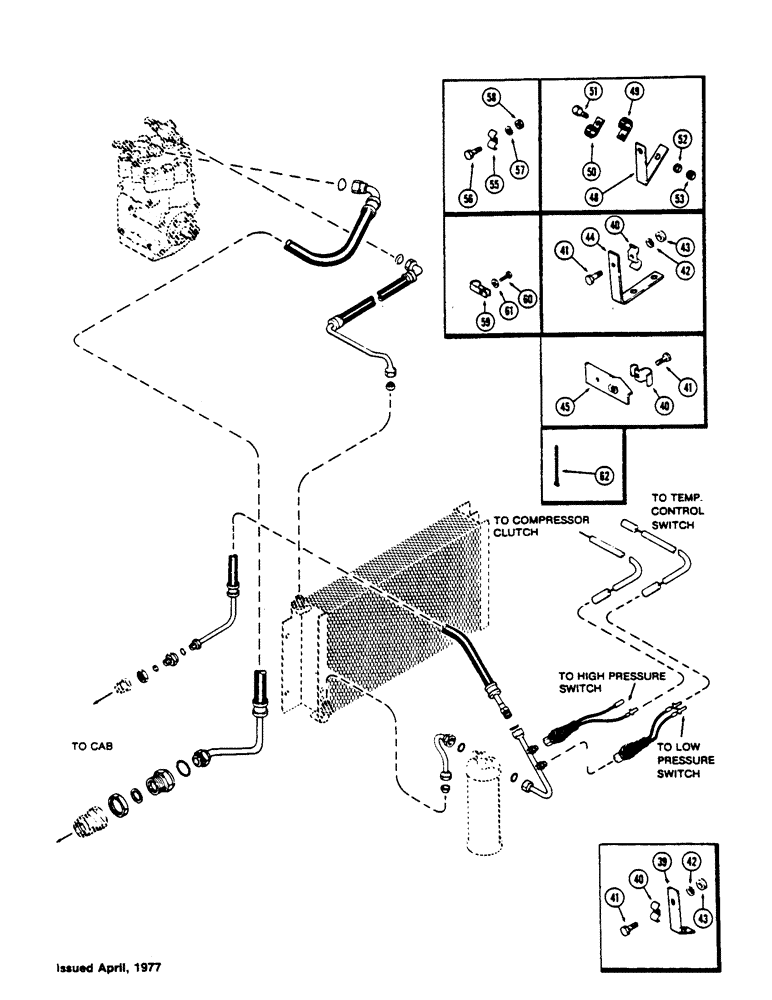

Запчасти Case IH 1175 (326) - AIR CONDITIONER, HOSES AND TUBES, WITH SAFETY SWITCH (09) - CHASSIS

39

A61202

BRACKET - hose support

1шт.

40

A65787

CLIP

- hose, 3/4 x 1-1/8"

2шт.

41

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

44

A61201

BRACKET - hose support

1шт.

45

A64397

BRACKET

- hose support

1шт.

48

A62206

BRACKET - hose support

1шт.

49

49885

CLAMP

CLIP - tube, 5/8"

1шт.

50

49845

CLAMP

CLIP - tube, 3/8"

1шт.

51

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

55

A65786

CLIP

- hose and tube, 3/8 and 3/4"

1шт.

56

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

57

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

58

25-104

NUT,1/4"-20, G5

1шт.

59

A7922

CLIP

- clutch wire

1шт.

60

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 7/8" N.C. hex

1шт.

61

92-6

LOCK WASHER,3/8"

1шт.

62

L11541

CABLE TIE,203.2mm L, Nylon

STRAP -, Serial Range: wire-tube

1шт.
