(038) - (451B) TURBO DIESEL ENGINE, FOOT THROTTLE

Запчасти Case IH 1175 (038) - (451B) TURBO DIESEL ENGINE, FOOT THROTTLE (03) - FUEL SYSTEM

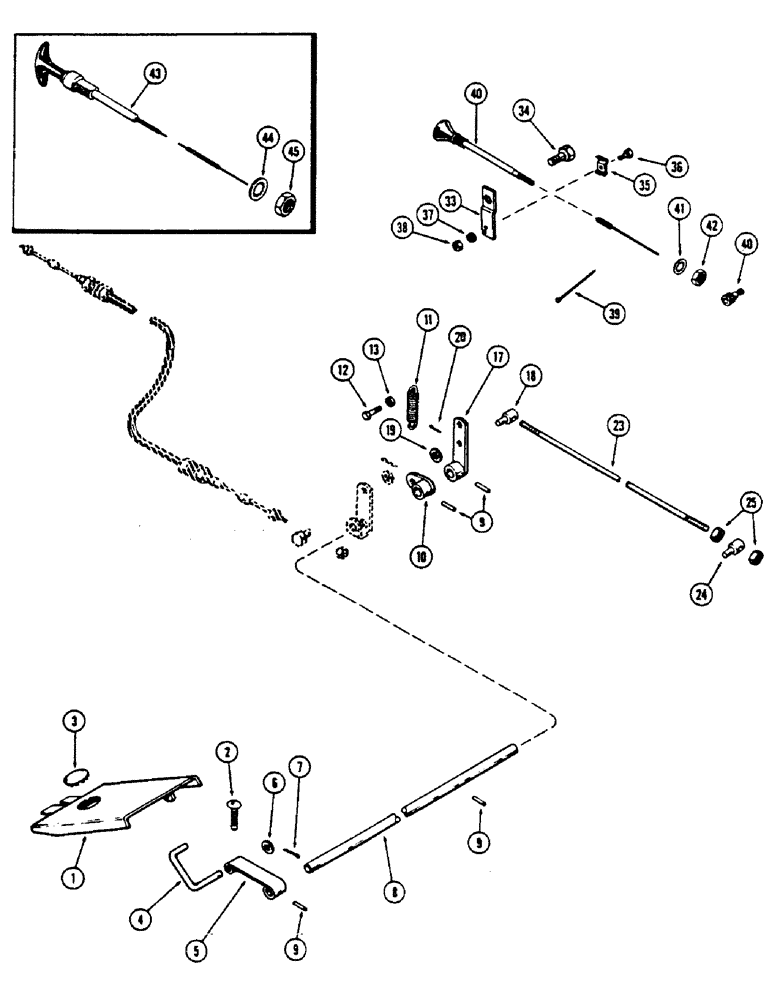

Схема запчастей Case IH 1175 - (038) - (451B) TURBO DIESEL ENGINE, FOOT THROTTLE (03) - FUEL SYSTEM
24
2
6
38
23
34
43
9
10
35
17
33
45
11
9
9
42
41
36
8
37
1
20
7
39
3
4
19
40
25
13
5
44
18
12
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A61706

PEDAL

ASSY. - foot throttle

1шт.

2

A60718

BOLT - adjusting, pedal stop

1шт.

3

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" dia.

1шт.

4

A61713

LINK

-, Serial Range: pedal-lever

1шт.

5

A61712

LEVER

- cross shaft

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

8

A59544

SHAFT - cross, throttle lever

1шт.

9

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

5шт.

10

A59549

LEVER - return spring

1шт.

11

A59551

SPRING

- return, throttle control

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Anchor Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

13

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex.

2шт.

17

A61101

LEVER

- control rod

1шт.

18

A62419

PIVOT

- upper, throttle rod (w/tapped hole)

1шт.

19

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

23

A59170

ROD

- control, Serial Range: lever-pump

1шт.

24

A59251

PIVOT

- lower, control rod (w/plain hole)

1шт.

25

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

2шт.

33

A62098

BRACKET

- cable mounting, fuel shut off controls

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fuel shut off controls Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

35

B51765

CLIP

- cable, fuel shut off controls

1шт.

36

173-2767

SCREW - #8-24 x 3/4" N.C. rd. hd., fuel shut off controls

1шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Fuel shut off controls #8

1шт.

38

129-16

NUT,#8-32

Fuel shut off controls #8-32

1шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, cable, fuel shut off controls

1шт.

40

A64849

STOP

CONTROL - stop, fuel pump (1st used trac. ser. no. 8693001), shut off, Includes: Ref. 41 and 42

1шт.

41

193-86

LOCK WASHER,7/16"

WASHER - Shakeproof, int., fuel shut off controls 7/16"

1шт.

42

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5, Fuel shut off controls

1шт.

43

A62113

CONTROL

- stop, fuel pump to trac., shut off, Inlcudes: Ref. 44 and 45, Serial Range: -8693001

1шт.

44

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, , Fuel shut off controls Int Tooth, 9/16"

1шт.

45

129-166

JAM NUT,Jam, 9/16"-18, G5

Fuel shut off controls Jam, 9/16"-18, G5

1шт.
