Запчасти Case IH 1175 (050) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

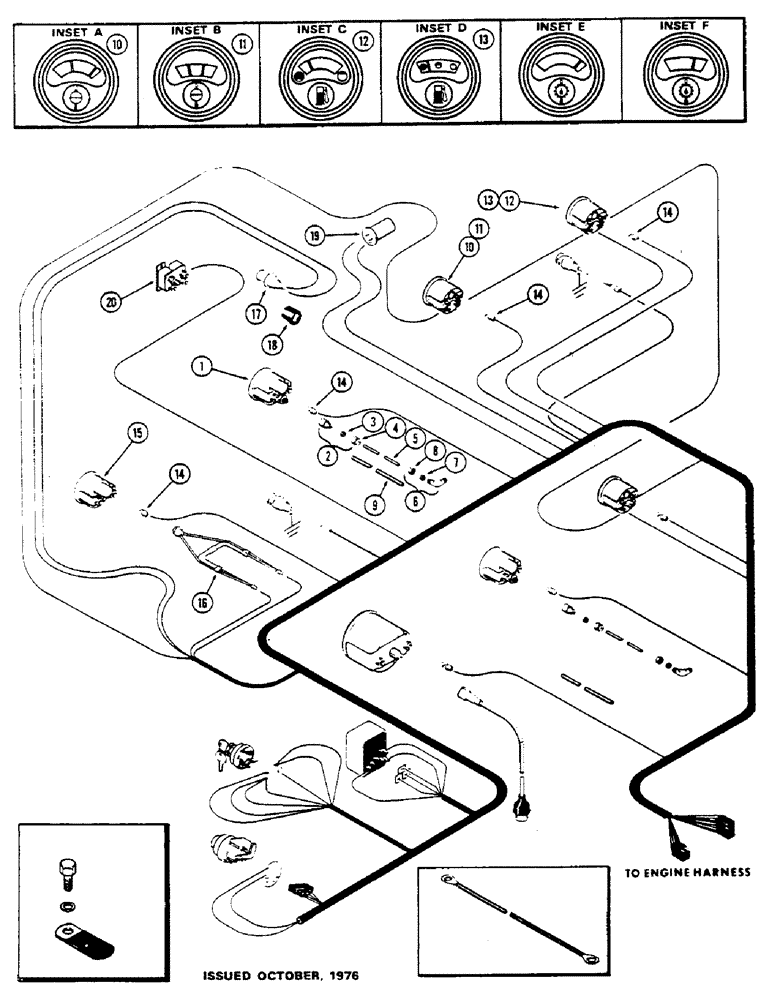

Схема запчастей Case IH 1175 - (050) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS
3
2
19
14
13
10
4
12
20
15
12
17
18
7
9
11
5
16
8
10
14
13
11
1
14
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR - 3/16" tube, 1/8" P.T. (used w/A66386), Includes: Ref. 3 and 4

1шт.

3

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube x 1/8" P.T. (used w/A59679), Includes: Ref. 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A66386

TUBE

- engine oil pressure, 3/16" (1st used trac. ser. no. 8731489)

1шт.

5

A59679

TUBE

- engine oil pressure, 1/8" to trac. (order 1-A66386, 1-222-11 and 1-222-41), Serial Range: -8731489

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 Degrees, 3/16" tube, 1/8" P.T. (used w/A66386), Includes: Ref. 7 and 8

1шт.

7

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 Degrees, 1/8" tube x 1/8" P.T. (used w/A59679), Includes: Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- tube (1/4" plastic x 63")

1шт.

10

A143677

ELECTRICAL GAUGE

GAUGE - engine temp. (Replaces A61786) (See Inset A)

1шт.

11

A61786

ELECTRICAL GAUGE

GAUGE - engine temp. (Replaces A61786) (See Inset B)

1шт.

12

A143676

ELECTRICAL GAUGE

GAUGE - fuel level (Replaces A58682) (See Inset C)

1шт.

13

A59682

ELECTRICAL GAUGE

GAUGE - fuel level (Order A143676) (See Inset D)

1шт.

14

A14553

BULB

- gauge lights

4шт.

15

A59687

DIAL

CASE - alternator warning lamp

1шт.

16

A137562

HARNESS

RECEPTACLE AND WIRE - alt. warning lamp (Replaces A59688)

1шт.

17

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- light (Mfrs. #257R)

1шт.

18

A62677

GUARD

SHROUD - hand brake lamp

1шт.

19

A65550

FLASHER UNIT

- (Replaces A34867)

1шт.

20

A59704

BREAKER

- circuit (80 amp.) (See Figure 52)

1шт.

20

A147004

BREAKER

- 100 amp.

1шт.
