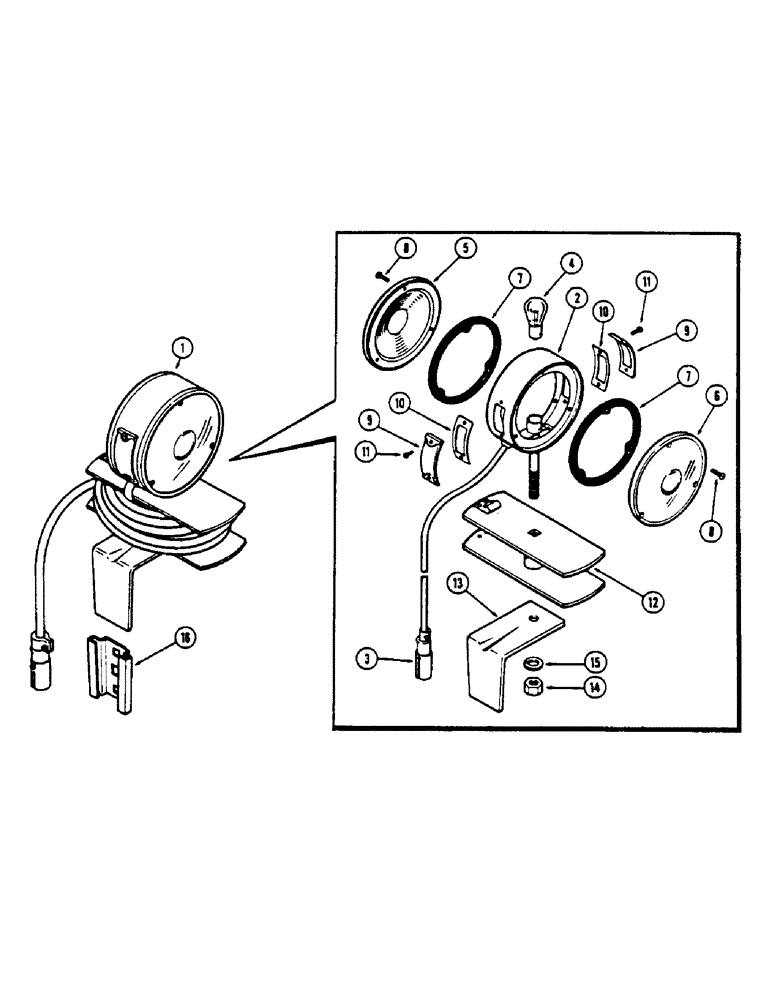

Запчасти Case IH 1175 (075A) - IMPLEMENT WARNING LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

A11066

LAMP ATT. - warning (Mach. Item), Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066), Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (includes cord)

1шт.

3

B50259

PLUG

- outlet socket

1шт.

4

33686

BULB

- (#1141)

1шт.

5

B50337

LENS

- amber

1шт.

6

B53962

LENS

- red

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6-24 x 1/2" rd. hd.

6шт.

9

B50328

LENS - side, clear

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens, #6-24 x 5/16" rd. hd.

4шт.

12

B50330

SPOOL - lamp cord reel

1шт.

13

B50331

BRACKET - mounting

1шт.

14

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

A8179

SOCKET

BRACKET - lamp positioning

1шт.
