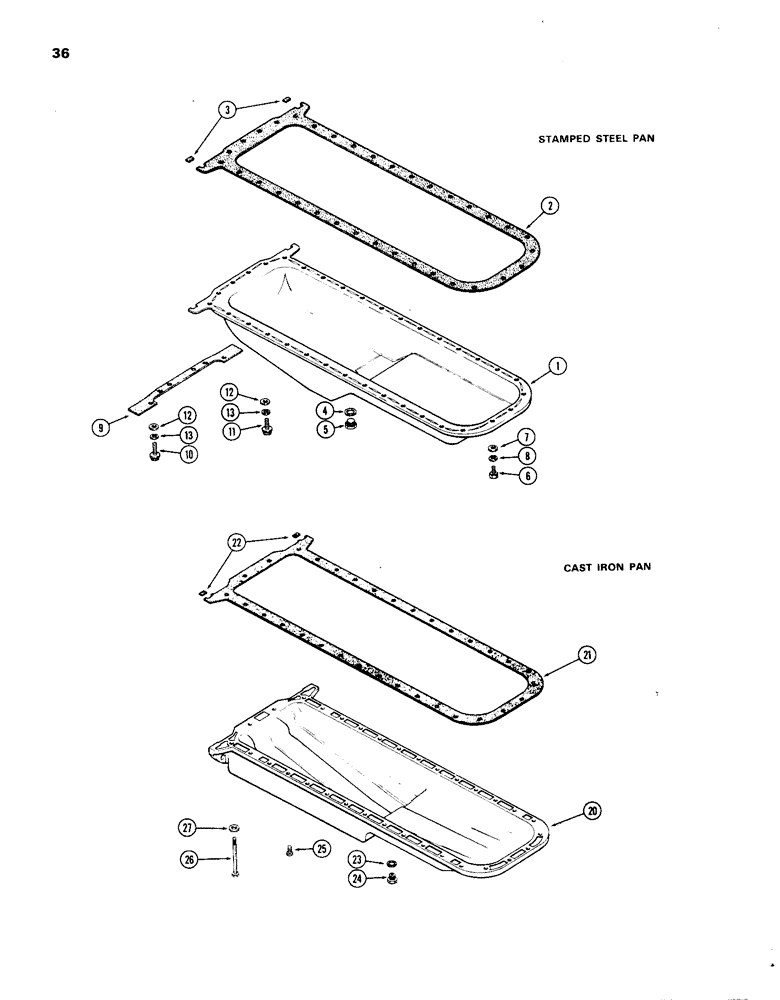

Запчасти Case IH 1270 (036) - OIL PAN, 451 BDT, DIESEL ENGINE, STAMPED STEEL, FIRST USED ENGINE SERIAL NUMBER 2531943 (02) - ENGINE

1

A66126

SUMP

PAN - oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 037A)

1шт.

3

A75308

OIL PAN GASKET SET

- oil pan corners

2шт.

4

A27968

RING

- drain plug (7/8 x 1-1/8" copper)

1шт.

5

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

26шт.

7

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

26шт.

8

92-6

LOCK WASHER,3/8"

26шт.

9

A76249

GASKET

- torque tube seal

1шт.

10

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - cap, 3/8 x 1-1/2" ferry hd.

2шт.

11

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - cap, 3/8 x 1-1/4" ferry hd.

4шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

20

A63907

PAN

- oil, used prior to Eng. Ser. No. 2531943, cast iron

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 037A), used prior to Eng. Ser. No. 2531943, cast iron

1шт.

22

A62402

GASKET

- oil pan corners, used prior to Eng. Ser. No. 2531943, cast iron

2шт.

23

A58608

GASKET

- drain plug (3/4 x 1" nylon), used prior to Eng. Ser. No. 2531943, cast iron

1шт.

24

A14280

PLUG

- oil pan drain, used prior to Eng. Ser. No. 2531943, cast iron

1шт.

25

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. sems, used prior to Eng. Ser. No. 2531943, cast iron

28шт.

26

A57436

BOLT

- 3/8 x 5-3/4" N.C. hex., spec., used prior to Eng. Ser. No. 2531943, cast iron

2шт.

27

A22317

WASHER

- 25/64 x 11/16 x 18 ga., copper, used prior to Eng. Ser. No. 2531943, cast iron

2шт.
