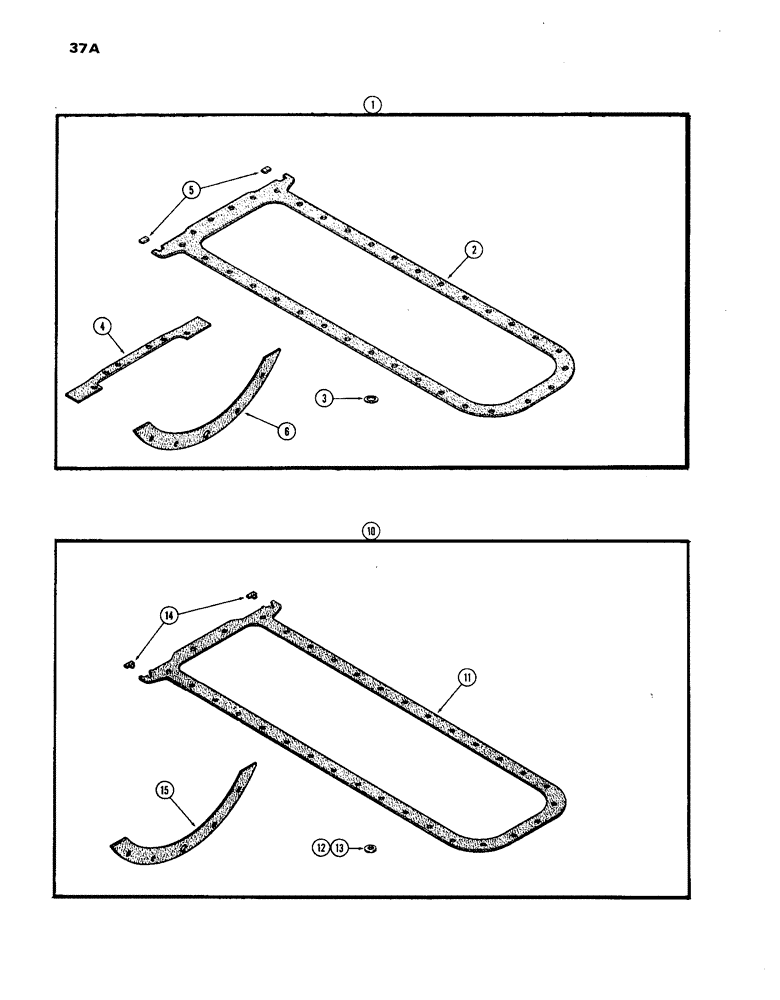

Запчасти Case IH 1270 (037A) - OIL PAN GASKET KIT, 451 BDT, DIESEL ENGINE, USE WITH STAMPED STEEL PAN, FIRST USED ENG. S/N 2531943 (02) - ENGINE

1

A43148

GASKET KIT - oil pan (See Note)

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order A43148)

1шт.

3

A27968

RING

- drain plug (57/64 x 1-1/4" copper)

1шт.

4

A76249

GASKET

- flywheel cover plate

1шт.

5

A75308

OIL PAN GASKET SET

- rear corner

2шт.

6

A57966

GASKET

- torque tube to eng. block (lower half)

1шт.

10

A43006

GASKET KIT

- oil pan (See Note), used prior to Eng. Ser. No. 2531943, use w/ cast iron

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006), used prior to Eng. Ser. No. 2531943, use w/ cast iron

1шт.

12

A58608

GASKET

- drain plug (3/4 x 1" nylon), used prior to Eng. Ser. No. 2531943, use w/ cast iron pan

1шт.

13

A58933

OIL PAN GASKET SET

- drain plug (7/8 x 1-1/4" Nylon) (Not Applicable), used prior to Eng. Ser. No. 2531943, use w/ cast iron pan

1шт.

14

A62402

GASKET

- rear corner, used prior to Eng. Ser. No. 2531943, use w/ cast iron pan

2шт.

15

A57966

GASKET

- torque tube to eng. block (lower half), used prior to Ser. No. 2531943, use w/ cast iron pan

1шт.
